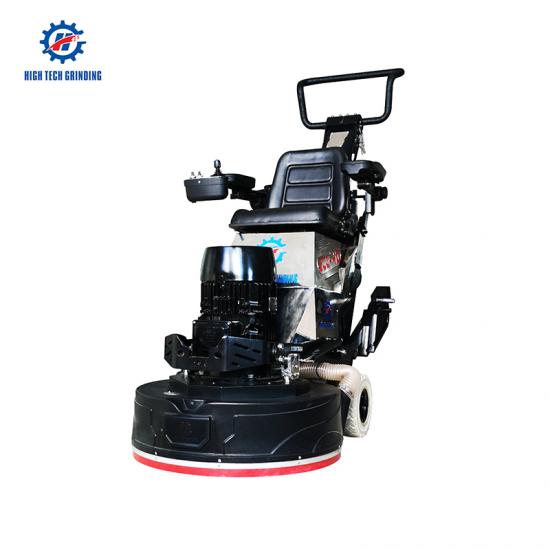

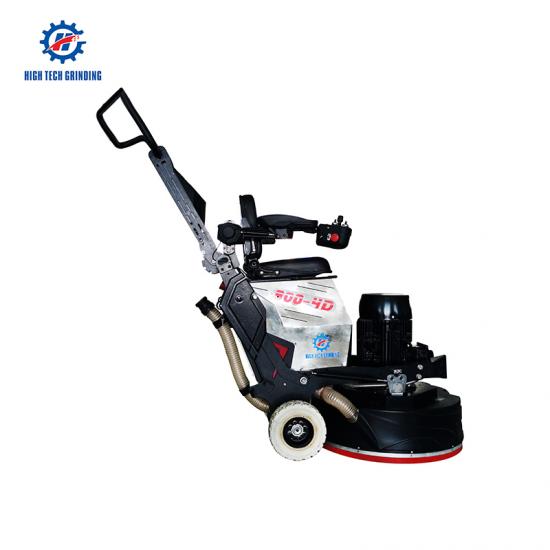

800-4D Ride On Concrete Floor Repairing And Removal Grinder Polisher Machine

The 800-4D ride-on floor grinder and polisher is an ideal floor surface prep equipment manufactured by Xingyi. It's 800mm large grinding width makes it available for both medium-sized areas and large-sized area projects, such as garage floor, commercial sites, exhibition hall, etc.

  • Brand:

    High Tech Grinding
  • Item NO.:

    800-4D
  • Product Origin:

    Fujian, China
  • Color:

    Black
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

800-4D Ride On Concrete Floor Repairing And Removal Grinder Polisher Machine

The 800-4D ride-on floor grinder and polisher is an ideal floor surface prep equipment manufactured by Xingyi. It's 800mm large grinding width makes it available for both medium-sized areas and large-sized area projects, such as garage floor, commercial sites, exhibition hall, etc. Equipped with an international brand WEG motor and Delta inverter, it is of super grinding efficiency and stable working performance. The 3 gears additional weight iron can be adjusted to add or reduce grinding pressure according to the actual floor condition. Equipped with a visible and integrated control panel and seat with ergonomic design, it is labor-saving and efficient from aggressive grinding to fine polishing in various floor applications, such as concrete, cement, epoxy, terrazzo, natural stone, and so on.


Specifications

Model

800-4D Fully automatic grinding machine

Brand

HTG

Voltage

220V 3 phase

380V 3 phase

Current

53A

30.7A

Working width

800mm

Grinding disc

256mm*4

Motor Rotating speed

450-1950rpm

Motor HP

15KW/20HP

Inverter

18.5KW/25HP

Configuration

WEG motor + Delta inverter

Weight

610kg/1345Lbs

Extra weight

20kg x 2

Water Tank

20L

Packing Size

162*90*151cm


Product display

Industrial and commercial floor grinding machine

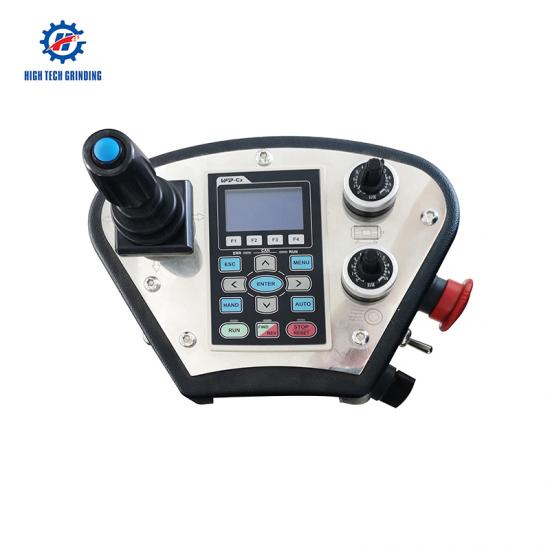

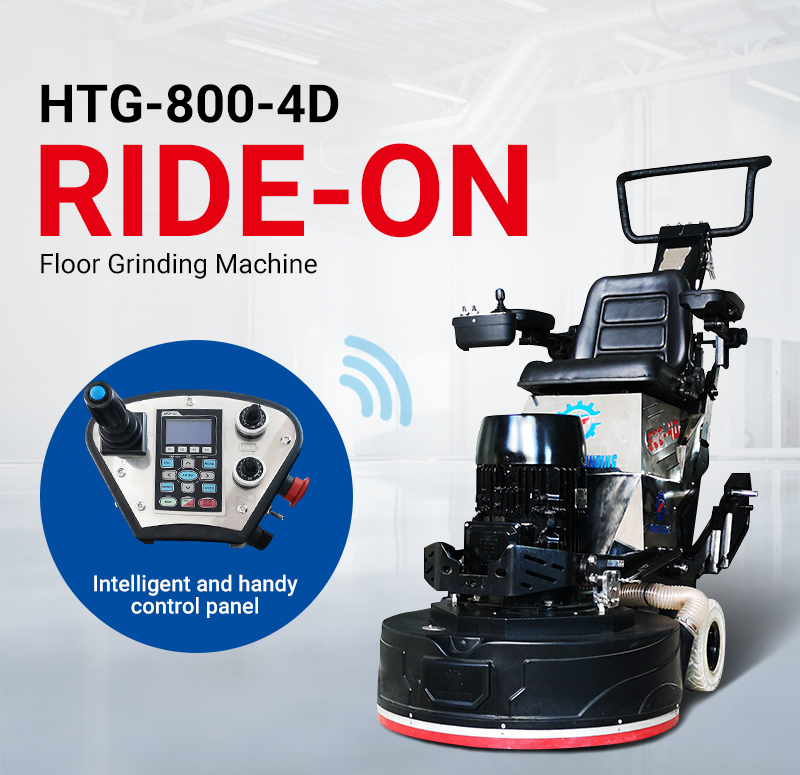

▶Integrated and handy control panel

World-renowned WEG motor with strong start torque

Adjustable additional weight iron with flexibility

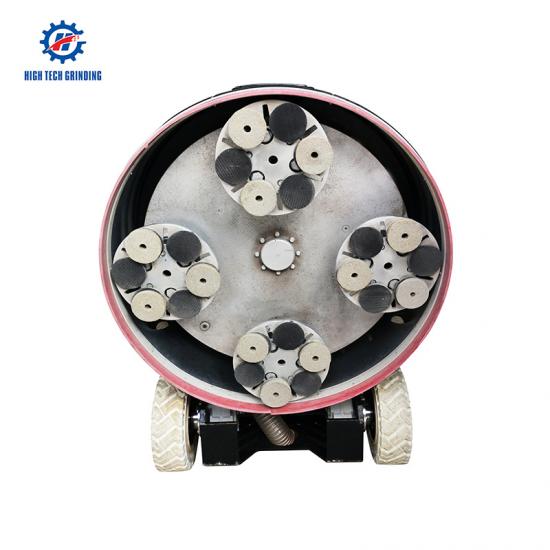

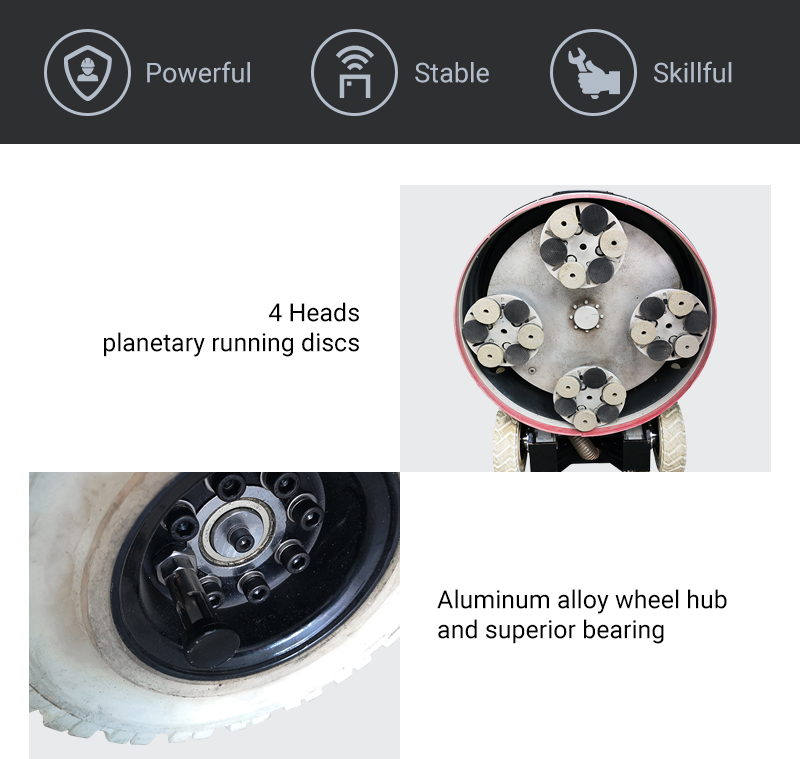

4 Heads planetary running discs

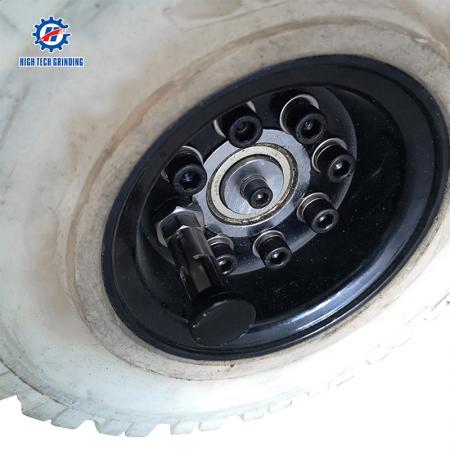

Aluminum alloy wheel hub and superior bearing

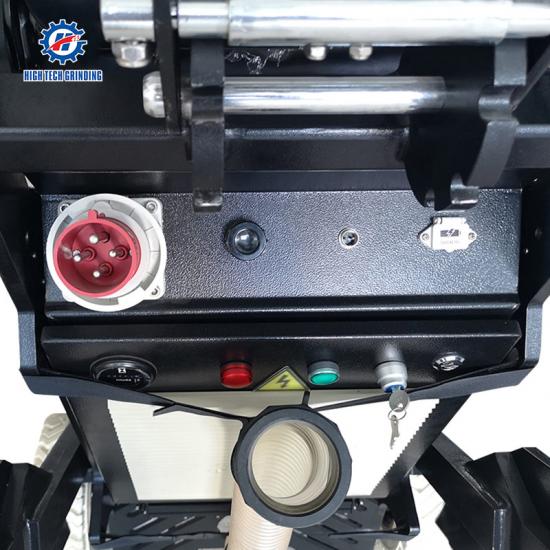

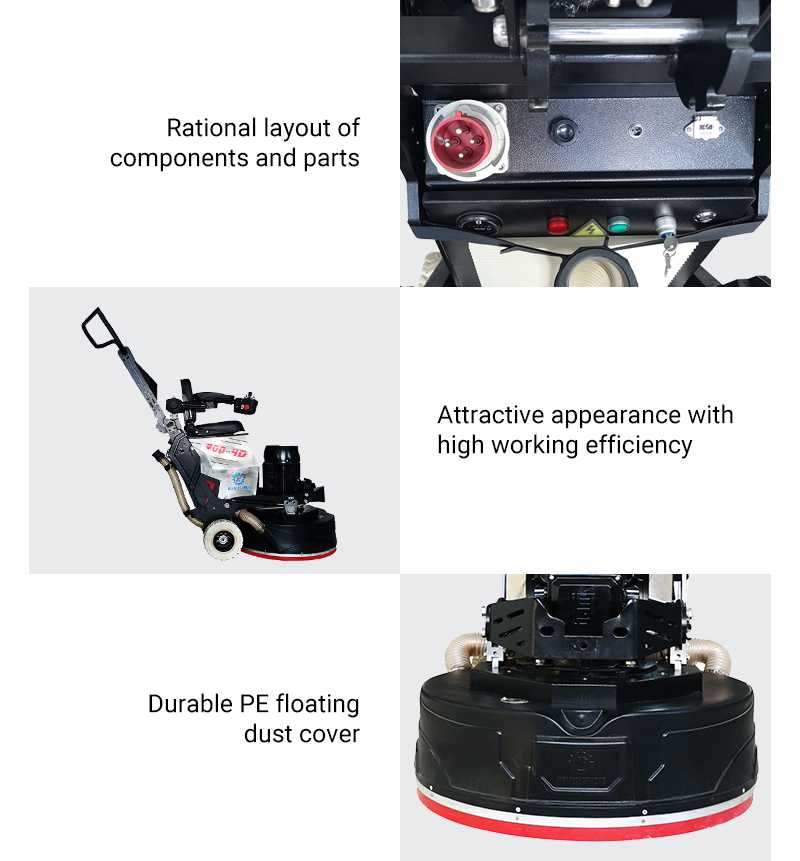

Logical layout of components and parts

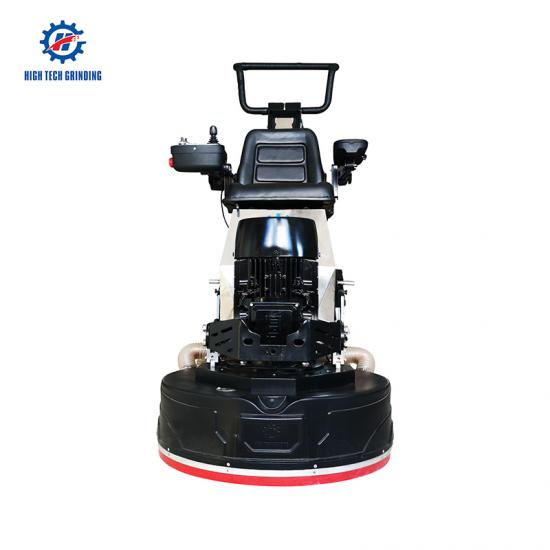

Attractive appearance with high working efficiency

Durable PE floating dust cover with long lifespan

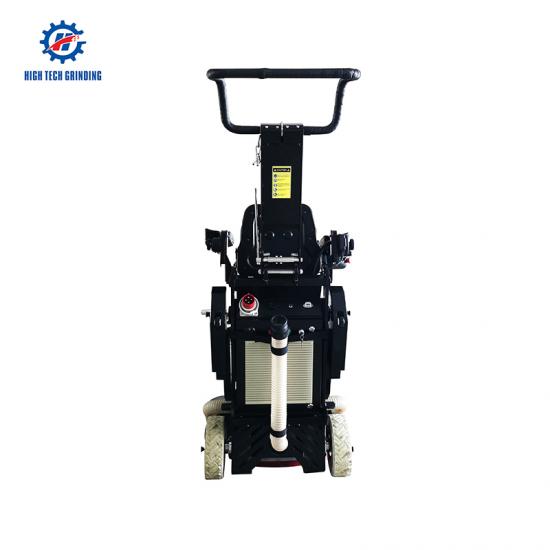

User-friendly handle with ergonomic design



Best garage floor grinding machine equipment

Electric used concrete grinding equipment


FAQ

Q1:Who makes the best concrete floor grinder?

A1:


Q2:how do you maintain a floor grinder?
A2:
1.Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2.Clean the water tank every week to prevent the dust blocks the filter.
3.After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4.If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5.Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6.Ask professional technician to do the machine maintenance and record the content of maintenance.
