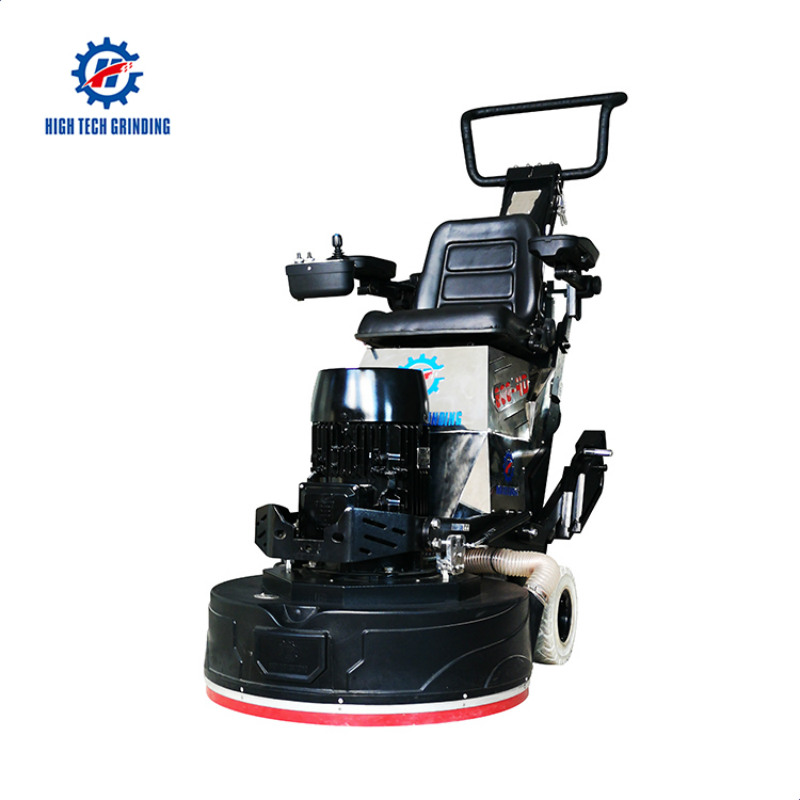

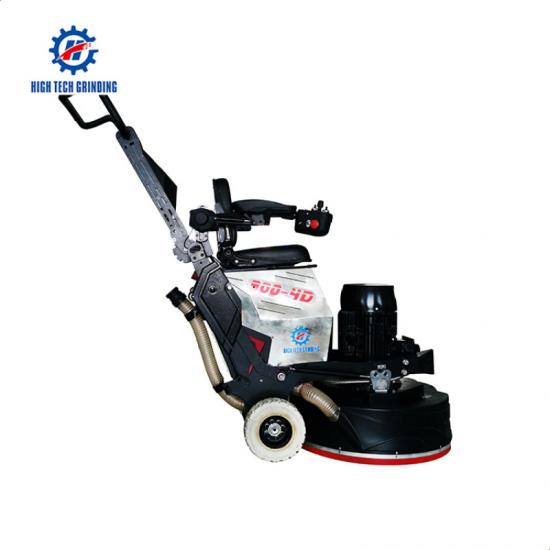

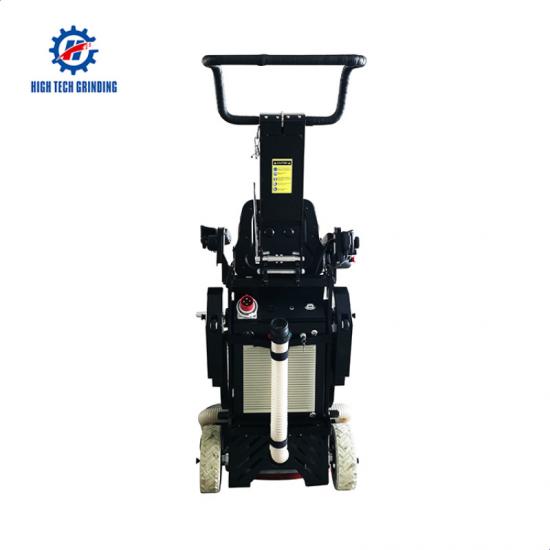

The 800-4D is a ride-on remote polisher and 20HP heavy-duty concrete grinder. This floor grinder subverts the working method of the traditional floor grinding machine. The traditional grinder can only be driven by manpower. While this grinding machine can be used for automatic grinding and polishing by controlling the remote control device, which greatly reduces the labor intensity of the workers.
Brand:
High Tech GrindingItem NO.:
800-4DProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:
7-20 Days800-4D Ride-on Remote Polisher And 20HP Heavy-duty Concrete Floor Grinder

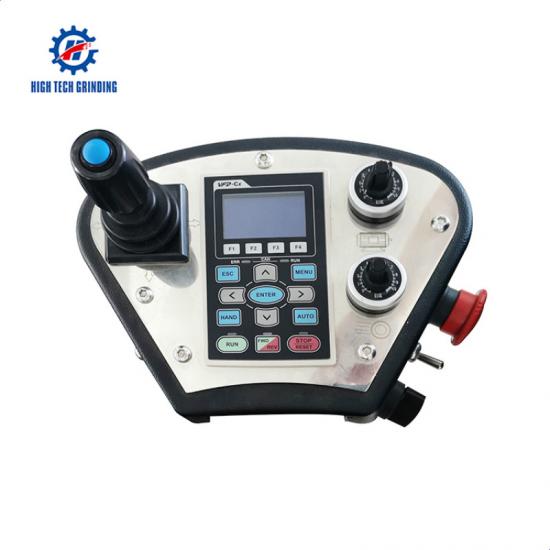

This floor grinder subverts the working method of the traditional floor grinder. The traditional grinder can only be driven by manpower. While this grinding machine can be used for automatic grinding and polishing by controlling the remote control device, which greatly reduces the labor intensity of the workers. In addition, this machine can also be easily used in slopes. With the sensor and control chip, it can cruise at a constant speed on a slope within 25 degrees. Whether it is grinding uphill or downhill, even one person can do it by himself. By contrast, ordinary floor grinders require several people to pull the machine together due to the weight of the model, which is unsafe to a certain extent.
Specifications
Model |
800-4D Fully automatic grinding machine |
|
Brand | XINGYI | |
Voltage |
220V 3 phase |
380V 3 phase |
Current |
53A |
30.7A |
Working width |
800mm |
|

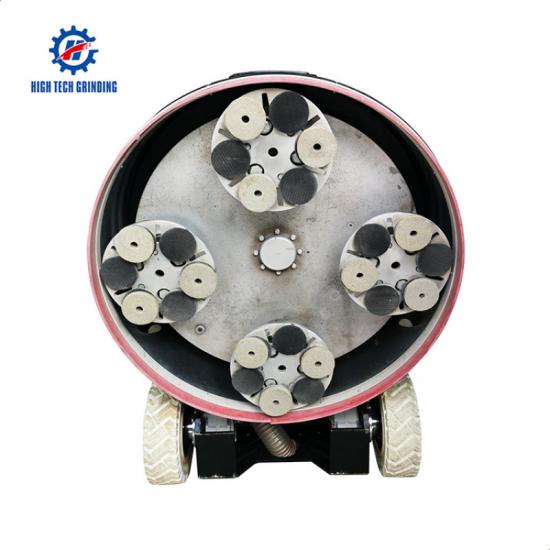

Grinding disc |
256mm*4 |
|
Motor Rotating speed |
450-1950rpm |
|
Motor HP |
15KW/20HP |
|
Inverter |
18.5KW/25HP |
|
Configuration |
WEG motor + Delta inverter |
|
Weight |
610kg/1345Lbs |
|
Extra weight |
20kg x 2 |
|
Water Tank |
20L |
|
Packing Size |
162*90*151cm |

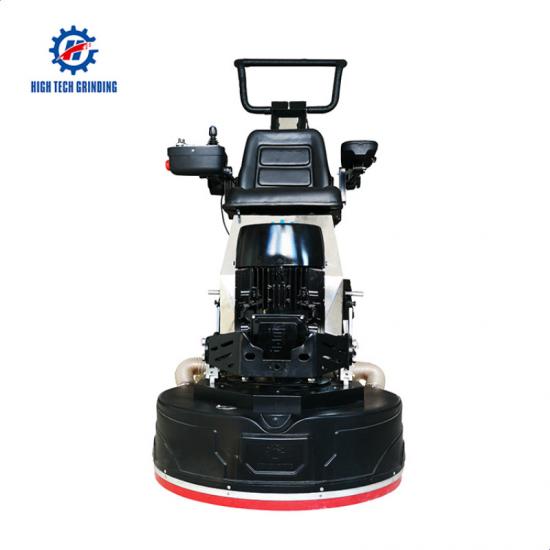

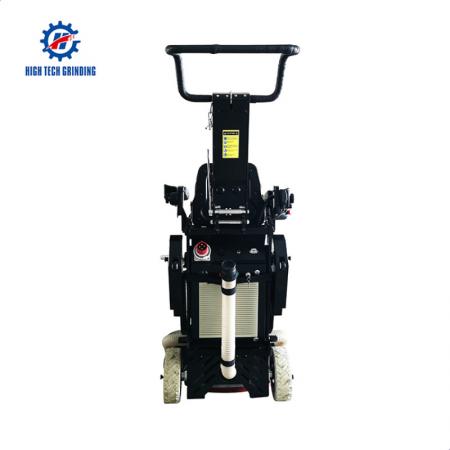

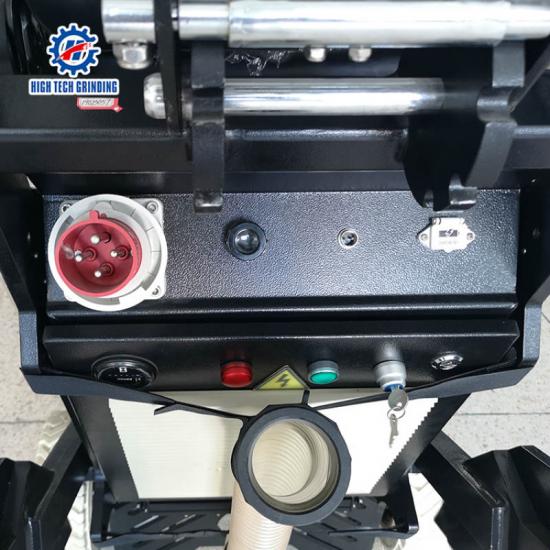

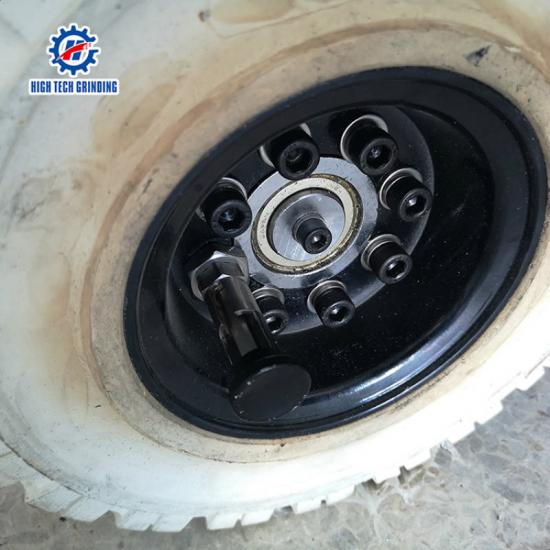

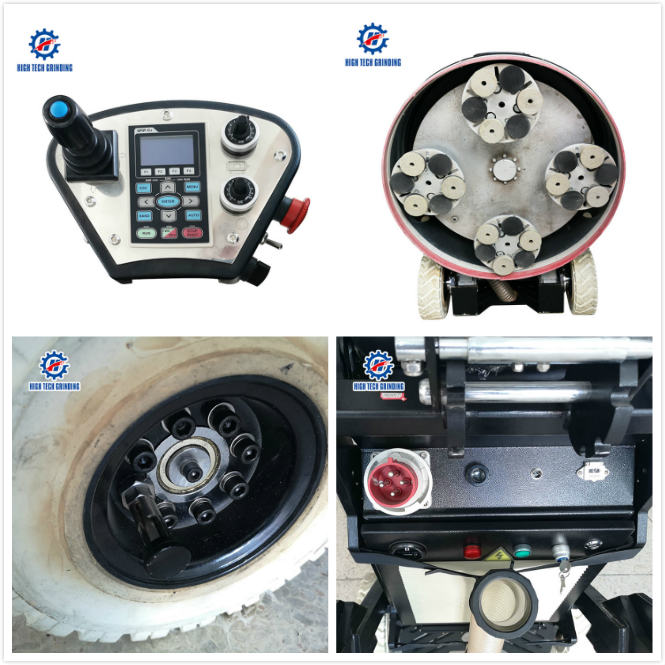

Product display

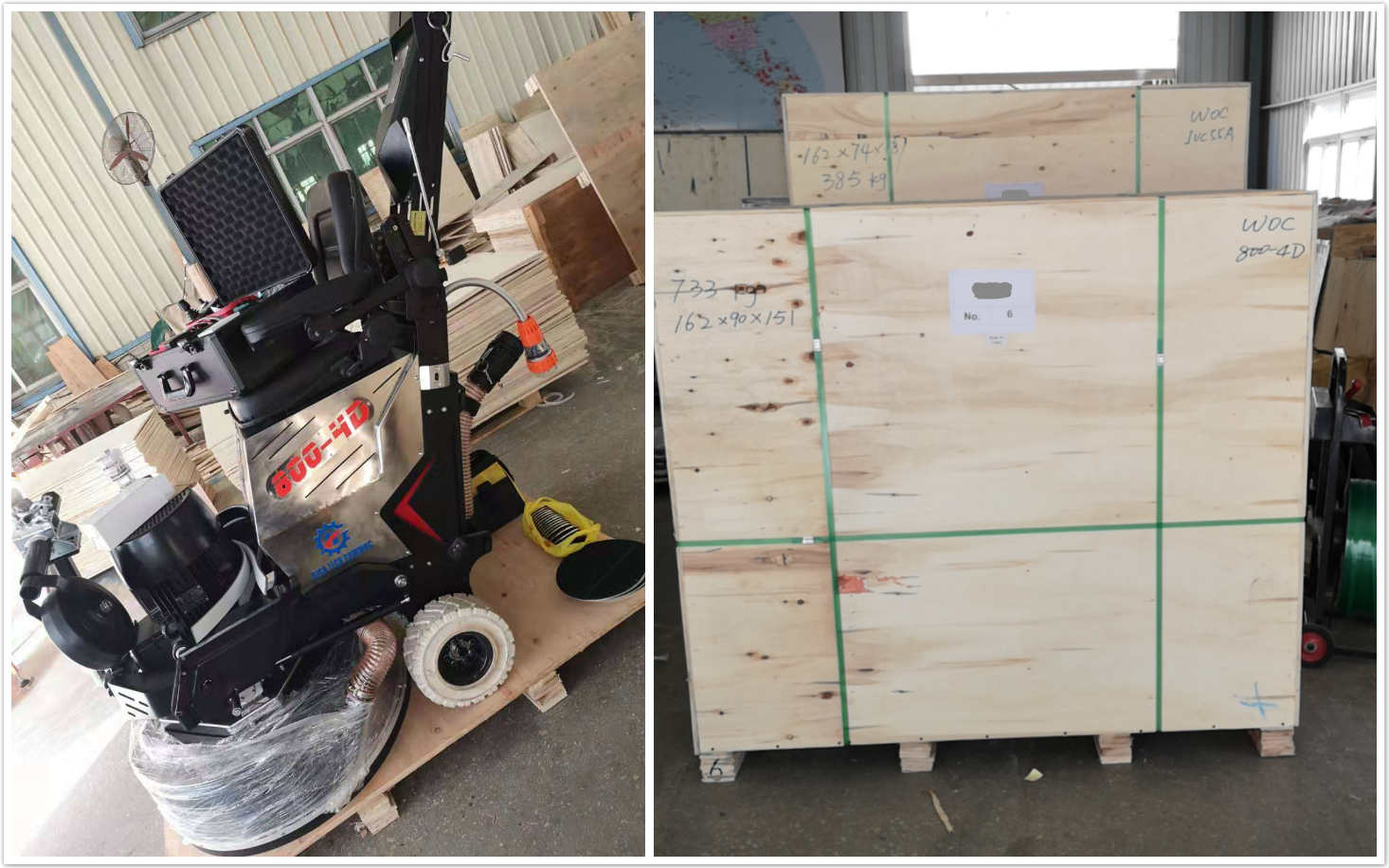

Package
FAQ
Q1: How do you repair holes and cracks on concrete floor with the 800-4D grinder equipment?
A1:
Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: 800-4D floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucket watering can.
②Clean all the sundries on floor with a acuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.
④Grind directly with a 800-4D planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.
Q2: How long is the guarantee period in the ride-on remote 800-4D floor grinding and polishing machine ?
A2:The guarantee period of motor and inverter is three year, and gear two years. If it is beyond the guaranteed time, the spare parts are broken due to a long time using, then the charge of the new parts and express will be paid by the customer, and we will send you steps or videos to help you to repair.
