800LE Multifunctional Self-propelled Concrete Terrazzo Floor Grinder And Polisher

With self-propelled design and four-head planetary rotation system, the 800LE is one of the most bestselling floor grinding machine from Xingyi, which ensures the operators to finish project with high efficiency and satisfactory result.

  • Brand:

    Xingyi
  • Item NO.:

    XY-800LE
  • Product Origin:

    Fujian, China
  • Color:

    Black And Red
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

800LE Multifunctional Self-propelled Concrete Terrazzo Floor Grinder And Polisher


Specifications

Model

800LE Multifunctional Self-propelled Concrete Terrazzo Floor Grinder

Voltage

220V 3 phase

380V 3 phase

Current

55.55A

32.23A

Working width

800mm

Grinding disc

256mm*4

Rotating speed

450-1950rpm

Frequency

50/60Hz

Motor power

15KW/20HP

Inverter power

15KW/20HP

Configuration

WEG motor+ Delta/Veichi inverter

Weight

556kg

Extra weight

20kg x 2

Water tank

39L

Packing size

147*88*132cm

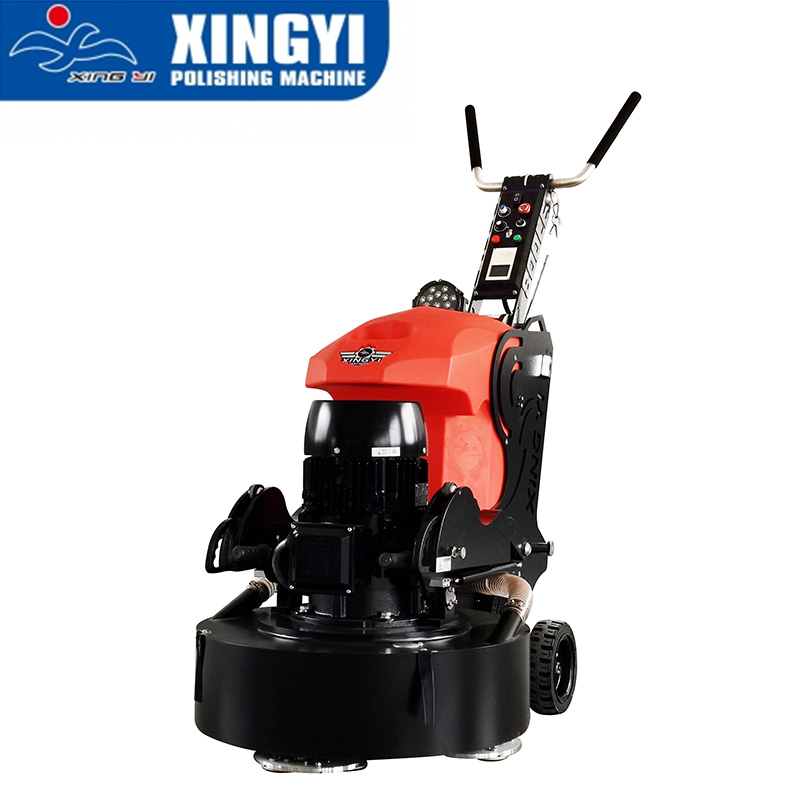

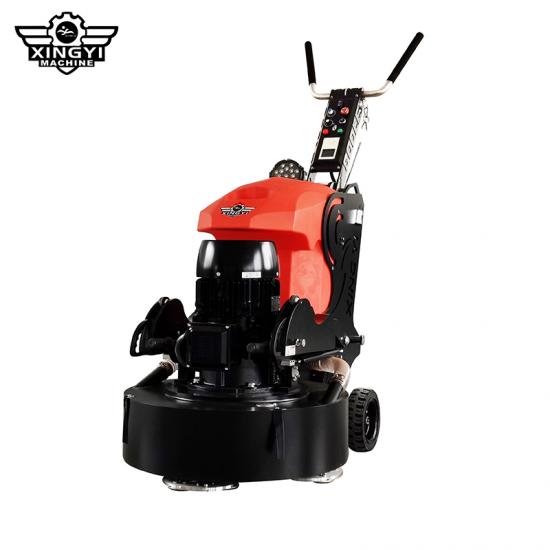

800LE Self-propelled Floor Grinder



1. Self-propelled design for stable performance and easy operation.

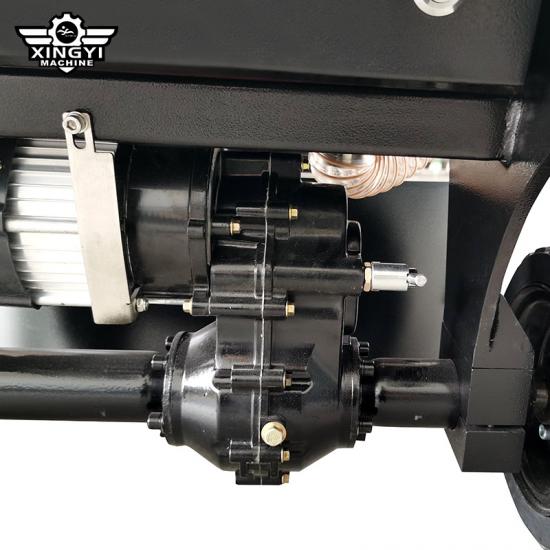

2. Gear driven system with stronger power and leveling force.

3. High precision and intensity gear box with longer lifespan.

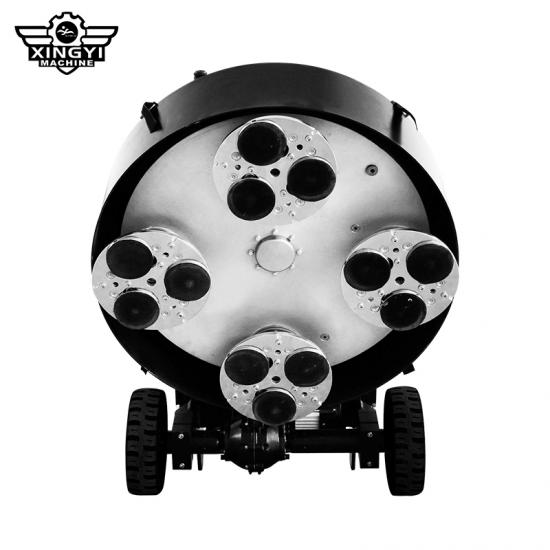

4. Multifunctional four-head planetary rotating system for easy handling.

5. Patented design and innovative gear maintenance.

6. Higher efficiency and lower labor cost.

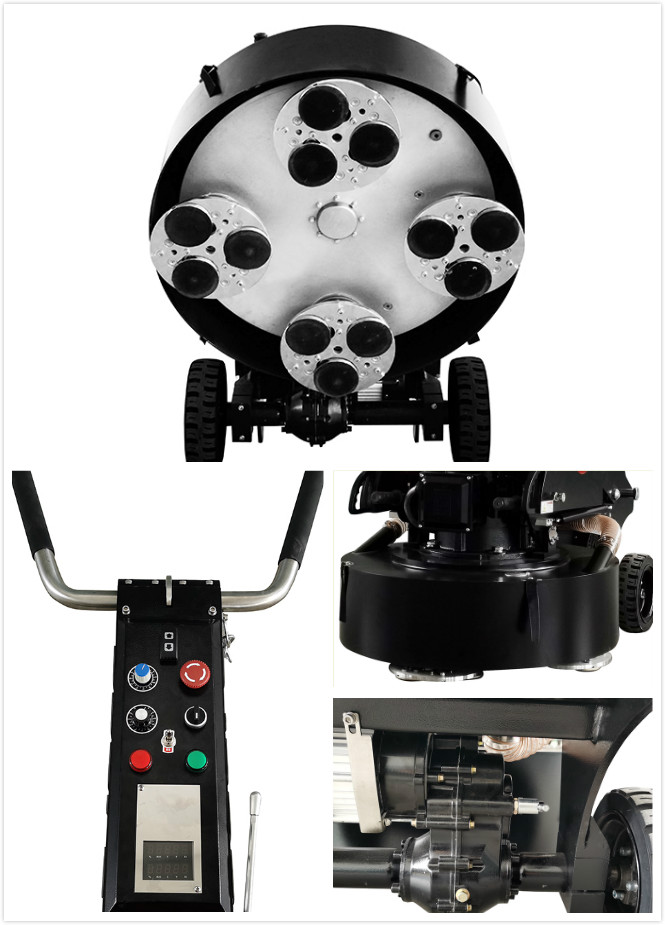

Multifunctional self-driven concrete polisher

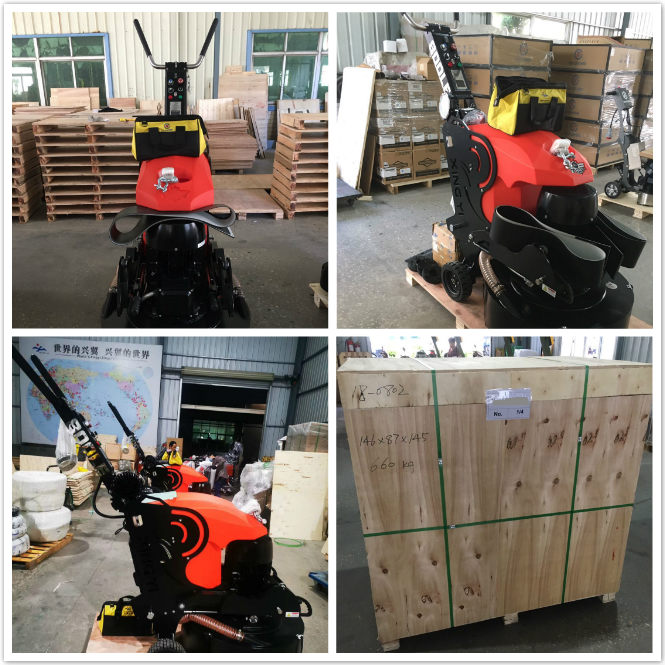

Package


800LE High-powered floor polishing machine



FAQ

Q1:Why do we recommend you to buy the 800LE self-propelled concrete terrazzo floor grinder?

A1:

1. The 800LE is equipped with hard gear tooth surface, which has a gear transmission efficiency as high as 97%.

2. Equipped with a well-known brand WEG motor, which can withstand high temperature and large loads.

3. Equipped with Delta inverter and an excellent parameter adjustment device, which can intelligently alarm and protect the machine to facilitate customer troubleshooting.

4. There is a 800mm large working width in the 800LE floor grinding machine. Under the same working area, its working efficiency is equivalent to that of 5 floor grinder with a working width of 550mm.


Q2:How do you grind concrete floors yourself?

A2:

Step 1: Check the floor surface condition.

Step 2: Grinding with metal pads HTG-2Y 30# 60#.

Step 3: Clean the floor surface.

Step 4: Repair surface with HTG-EC-1008 and metal pads 120#.

Step 5: Polishing with resin pads HTG-C310-50# 100#.

Step 6: Harden the surface with densifier HTG-EC-L01.

Step 7: Polishing with resin pads C310-200# 400# 800# 1500#.

Step 8: Apply sealer HTG-EC-S01 on the surface.

Step 9: Buffing with high speed polisher and buffing pads.
