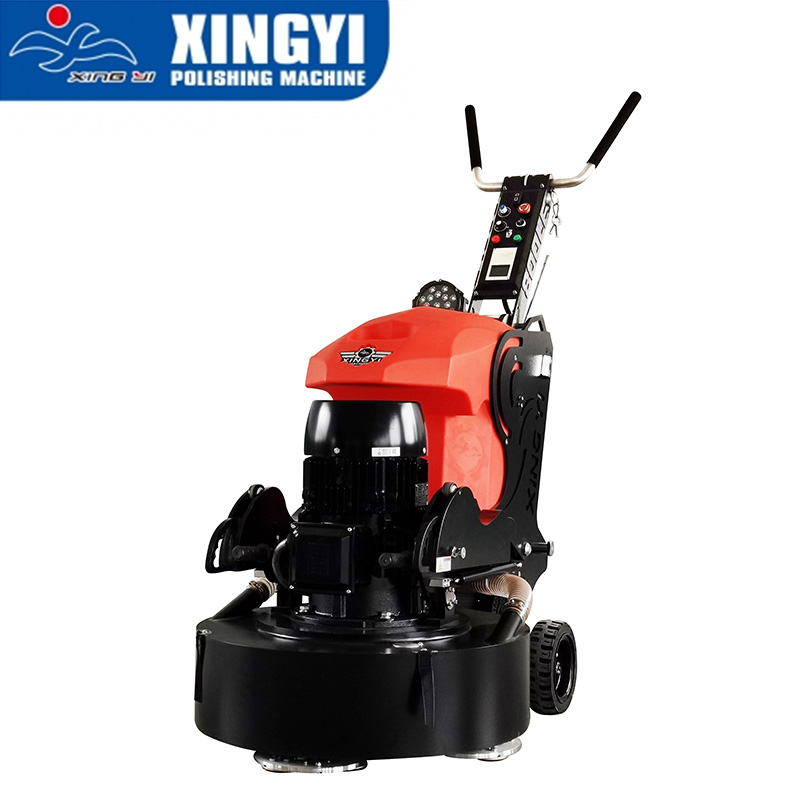

800LE Self-propelled Floor Grinder And Versatile Polisher With Gear-driven

800LE Self-propelled floor grinder and versatile polisher are used to grind (rough grind, fine grind, and polish) concrete, natural stone and terrazzo floors or other materials. With a self-propelled function, it realizes higher grinding efficiency with lower labor costs. The design of the planetary rotating system makes the grinding effect uniform and stable.

  • Brand:

    Xingyi
  • Item NO.:

    800LE
  • Product Origin:

    Fujian, China
  • Color:

    Black And Red
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

800LE Self-propelled Floor Grinder And Versatile Polisher With Gear-driven

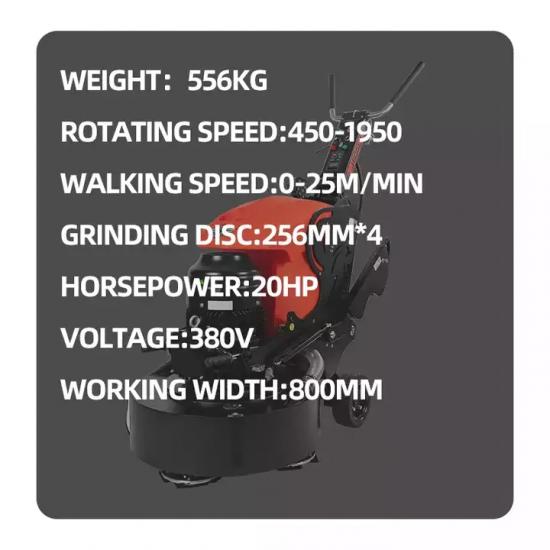

Specifications

Model

800LE Multifunctional Self-propelled Concrete Terrazzo Floor Grinder

Voltage

220V3 phase

380V 3 phase

Current

55.55A

32.23A

Working width

800mm

Grinding disc

256mm*4

Rotating speed

450-1950rpm

Frequency

50/60Hz

Motor power

15KW/20HP

Inverter power

15KW/20HP

Configuration

WEG motor+ Delta/Veichi inverter

Weight

556kg

Extra weight

30kg x 2

Water tank

39L

Packing size

147*88*132cm


Product display

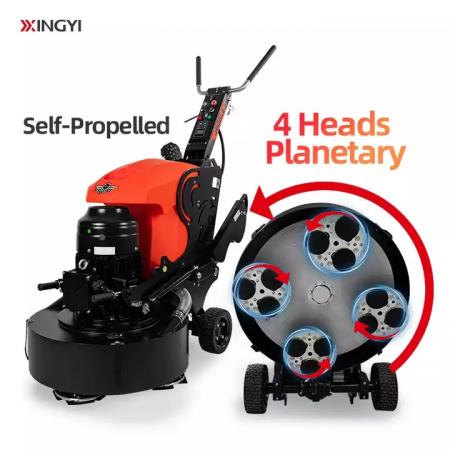

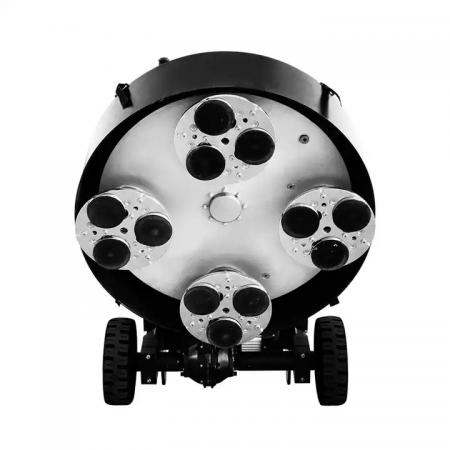

Four-head floor grinder and polisher

Four-head floor grinder and polisher Self-driven industrial floor grinder


Package

Multifunctional floor grinder for concrete and terrazzo


FAQ

Q1:How do you grind concrete floors yourself?

A1:

Step 1: Check the floor surface condition.

Step 2: Grinding with 800LE floor grinding machine and diamond pads HTG-2Y 30# 60#.

Step 3: Clean the floor surface.

Step 4: Repair the hole and cracks with HTG-EC-1008 and diamond pads 120#.

Step 5: Polish with resin pads HTG-C310-50# 100#.

Step 6: Harden the floor with densifier HTG-EC-L01.

Step 7: Polish with resin pads C310-200# 400# 800# 1500#.

Step 8: Apply sealer HTG-EC-S01 on the floor.

Step 9: Buff with high speed burnisher and buffing pads


Q2: What arethe main products of Xingyi?

A2:

① The XY and High Tech Grinding Brand Polishing Machines which enable the Planetary or Rotatory direction.
② The High Tech Grinding Diamond abrasives from metal to resin for polishing.
③ The High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.



Email: xingyi15@polishingmachine.cc
Skype: xingyistone15
Whatsapp: 008615960788815


A free consultation

Enable the global floor labors to work with health, Easy and happiness
