Epoxy Terrazzo Polishing Machine

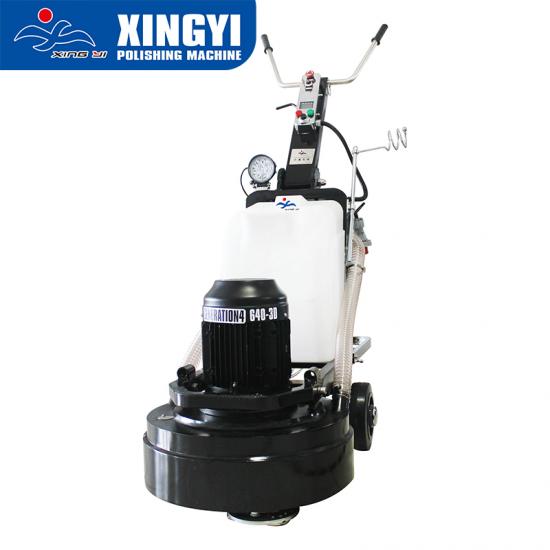

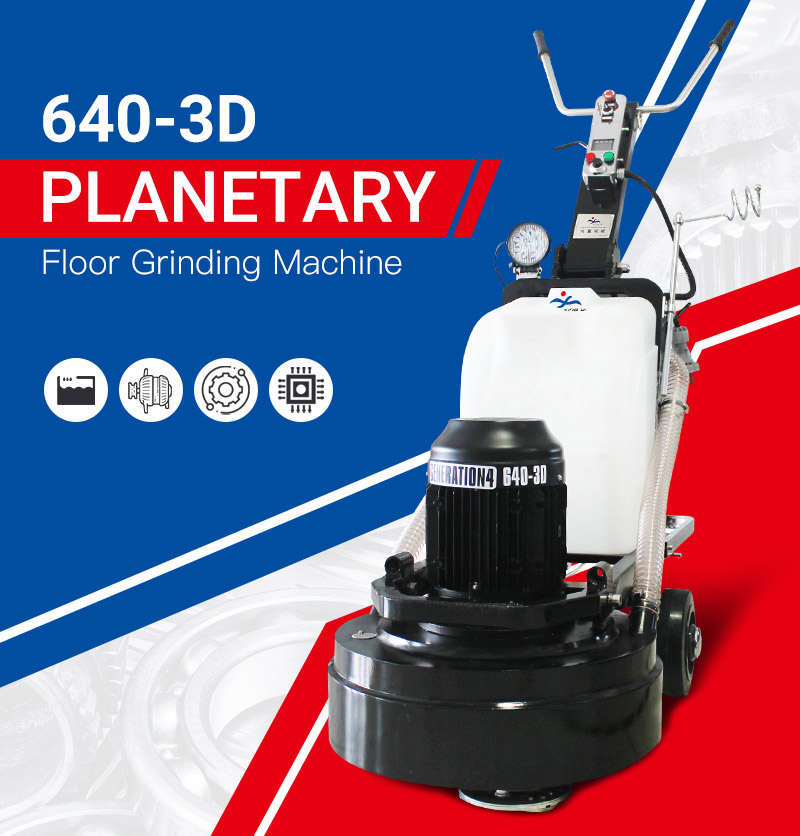

Manufactured by Xingyi, the 640-3D is a professional concrete floor surface preparation machine. With 640mm large working width, 10HP powerful WEG motor and 15HP Delta inverter, it is of perfecting grinding effect, stable performance and high working efficiency.

Brand:
Xingyi
Item NO.:
640-3D
Product Origin:
Fujian, China
Color:
Black And White
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

Epoxy Terrazzo Polishing Machine

The 640-3D is a professional concrete floor surface preparation equipment made by Xingyi. It has a perfection grinding effect, steady performance, and high operating efficiency thanks to its 640mm broad working width, 10HP strong WEG motor, and 15HP Delta inverter. It is equipped with a 32L big capacity water tank that can be used for both dry and wet grinding. After spinning the water switch for wet grinding, it may sprinkle water on the grinding plate, cooling the abrasive and increasing the operating efficiency. Overall, it's a highly efficient and productive floor surface grinder and polisher.

Specifications

Model	640-3D Concrete floor grinding polishing machine
Operating width	640mm
Grinding disc	200mm*3 (3heads)
Rotating speed	350-1680rpm
Motor HP	7.5KW/10HP
Inverter HP	11KW/15HP
Amperage	15.6A	27.0A
Voltage	380-440V three phase	220-240V three phase
Weight	267kg
Extra weight	40kg*1
Water tank	32L
Packing size	12272124cm
Configuration	WEG motor + Delta inverter

Product display

640-3D Industrial floor grinding equipment

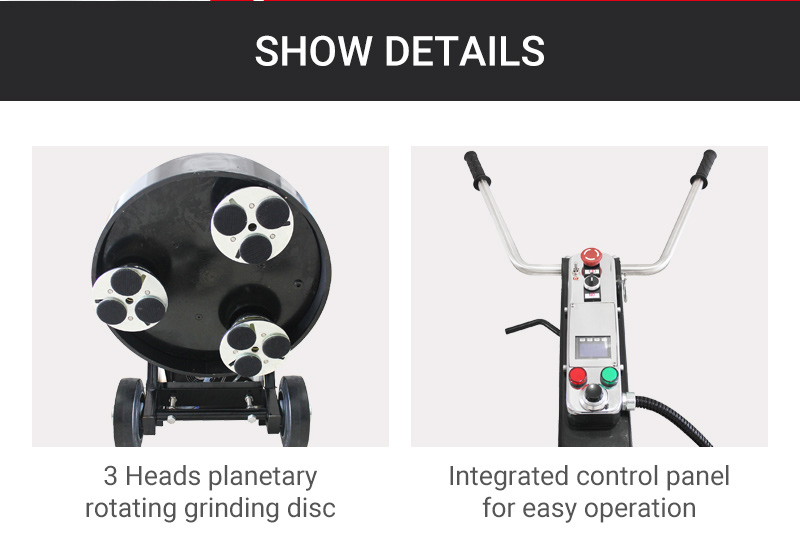

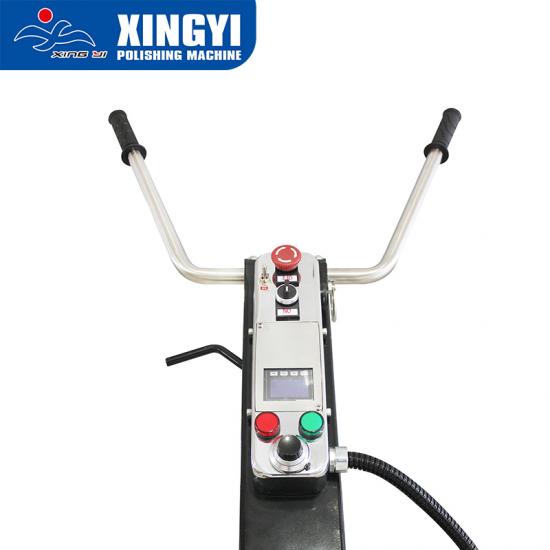

1. An integrated control panel makes it simple to operate.
2. Dual-voltage option: 380-440V three-phase, 220-240V three-phase

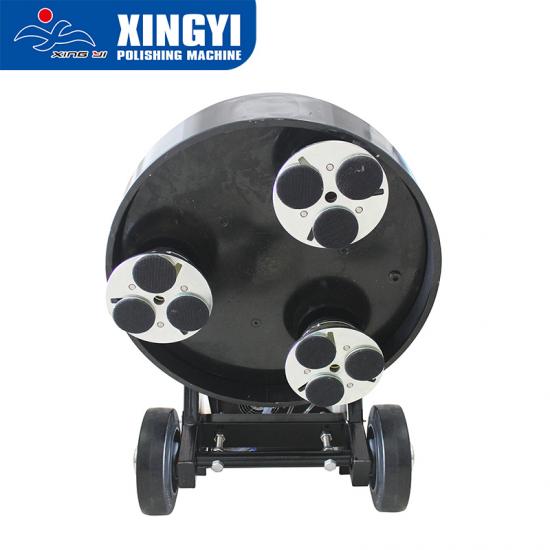

3. Planetary rotating plate grinding disc with three heads and a consistent performance.
4. Polishing discs rotate in a planetary motion for precise grinding.
5. A variety of abrasive grinding discs are available to suit a variety of applications.
6. Convenient portability with collapsible handle and removable frame.
7. Delta motor, which is well-known for its outstanding quality and performance.

High efficiency concrete grinder polisher grinder

Electric floor surface grinding machine equipment

FAQ

Q1: Which concrete floor grinder is the best?
A1:Generally speaking, the sound of the gearbox may be used to identify a grinder. You may also verify whether the machine's major components, such as the motor and inverter, are of a world-famous or low-quality brand. What about machine efficiency? Do you get weary of using it? Last but not least, machine warranties and factory support are critical.

Q2: How do you grind concrete floors yourself?
A2:
Step 1: Check the floor surface condition.
Step 2: Grinding with 640-3D floor grinding machine, metal pads HTG-2Y 30# 60#.
Step 3: Clean the floor surface.
Step 4: Repair surface with HTG-EC-1008 and metal pads 120#.
Step 5: Polishing with 640-3D floor polishing machine and resin pads HTG-C310-50# 100#.
Step 6: Harden the surface with densifier HTG-EC-L01.
Step 7: Polishing with 640-3D concrete floor grinder and resin pads C310-200# 400# 800# 1500#.
Step 8: Apply sealer HTG-EC-S01 on the surface.
Step 9: Buffing with high speed polisher and buffing pads.
