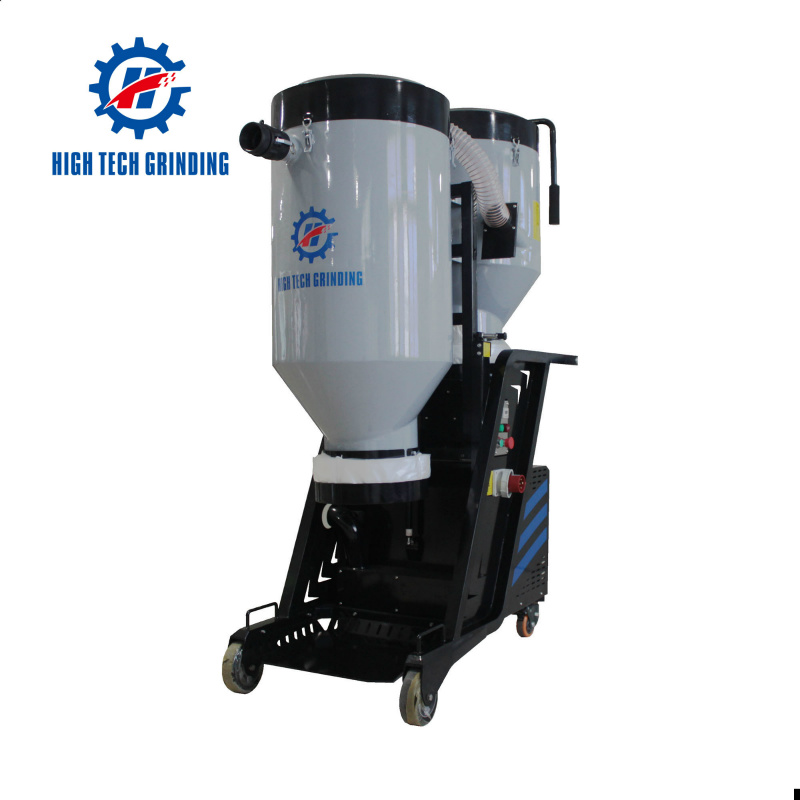

IVC-55L Industrial Vacuum Cleaner and 5KW Dust Extractor For Construction Use

IVC55-A is an industrial vacuum cleaner specially designed for grinding machines. It mainly uses cyclone separator and HEPA13 as the filtering device. The cyclone separator is responsible for filtering most of the dust particles. A small part of the light weight dust is filtered by HEPA13, so the vacuuming effect is particularly good.

  • Brand:

    High Tech Grinding
  • Item NO.:

    IVC-55L
  • Product Origin:

    Fujian, China
  • Color:

    Black And Gray
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

IVC-55L Industrial Vacuum Cleaner and 5KW Dust Extractor For Construction Use

Specifications

Model

Industrial vacuum cleaner IVC-55L

Voltage

380V 3 phase

Power

5.5KW/7.5HP

Weight

280kg / 617 lbs

Air flow rate

600m3/h

Suction diameter

50mm/80mm

Packing Size

182*74*162cm

Packing Weight

373kg

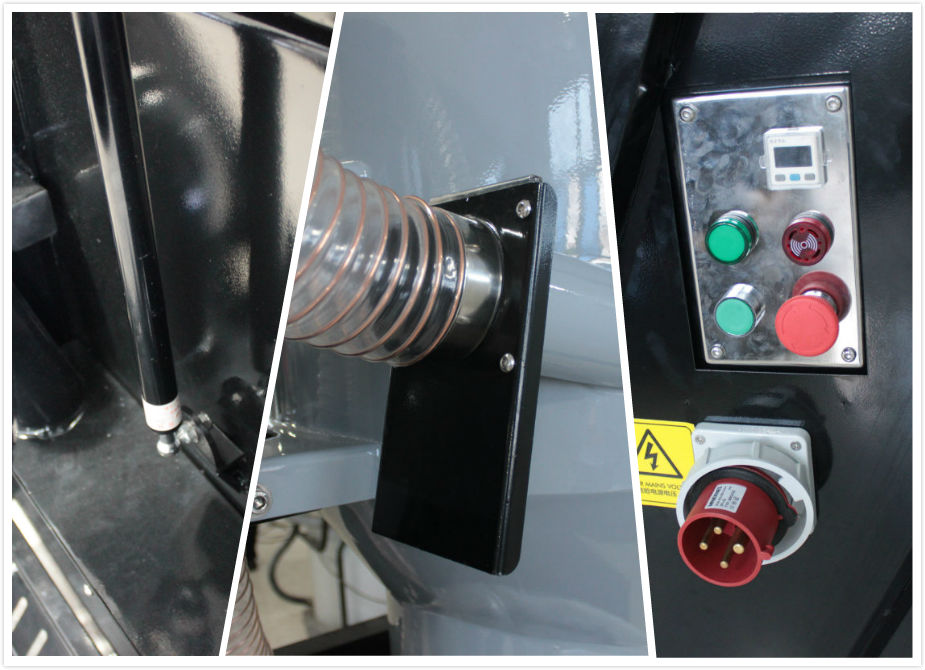

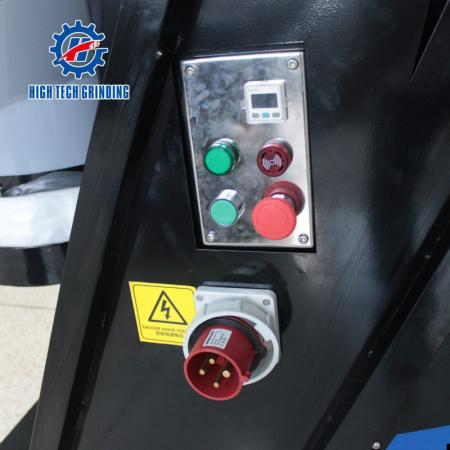

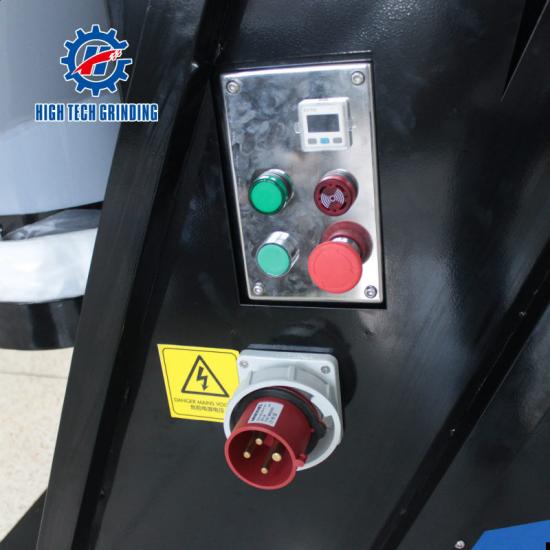

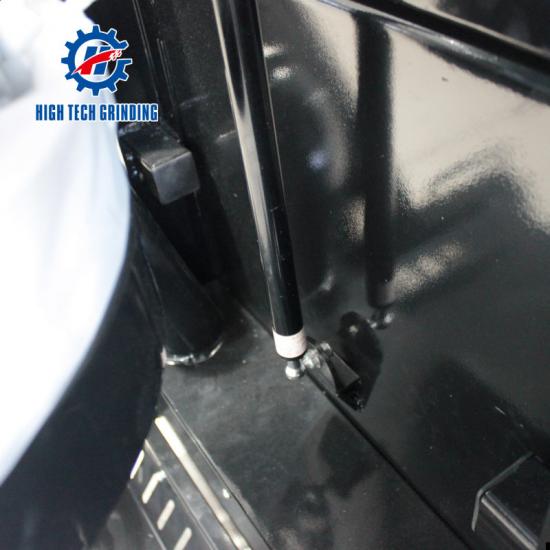

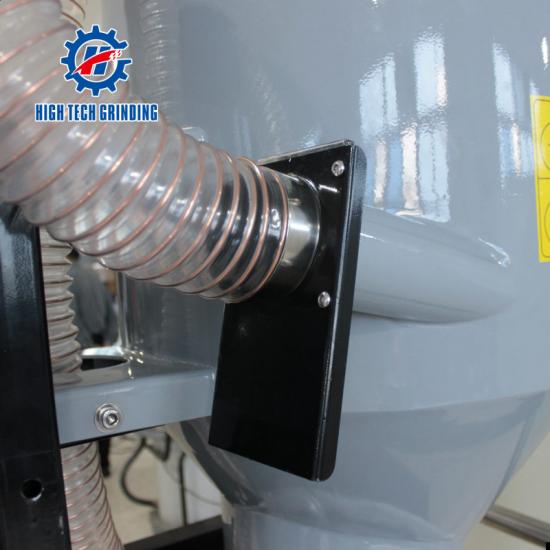

Product display

IVC-55L is a vacuum cleaner mainly used for industrial and construction purposes. It is mainly used to absorb dry dust particles, such as dust generated in the process of grinding concrete, stone, and wood. The vacuum cleaner has two filtering systems, the cyclone is the main filter, and the HEPA13 filter barrel is the secondary filtering device. The vacuum cleaner is equipped with a quick connector, which can be used to safely and quickly connect with various grinding machines for dust removal.


The primary filtration system in the vacuum cleaner is a cyclone separator, which main function is to filter larger particles of dust, so most of the dust will be filtered here. The remaining small dust particles will be filtered by the secondary filter system HEPA13 filter barrel device. Therefore, the vacuum cleaner has high dust filtering effect, super high performance and long service life.

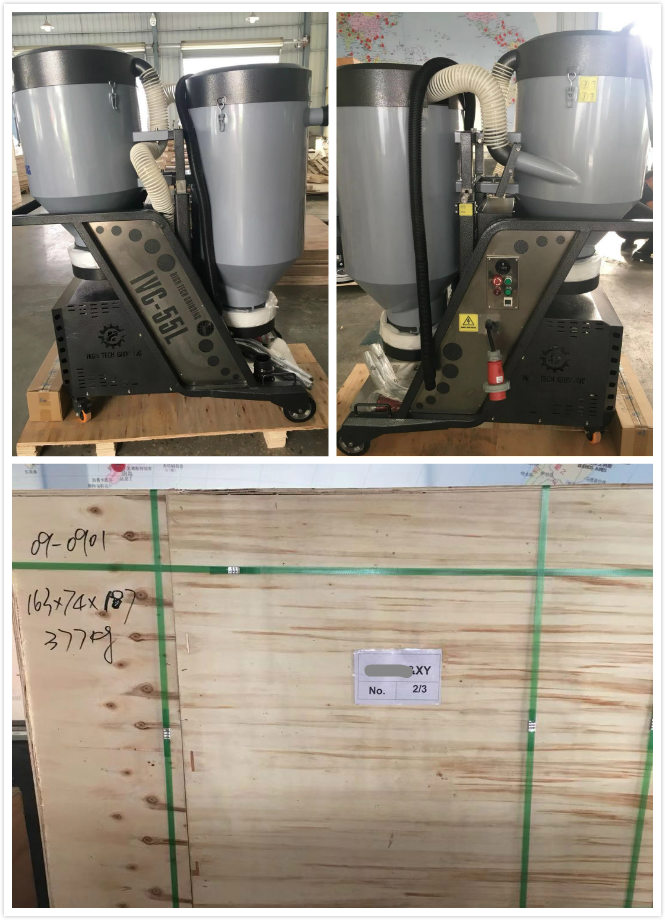

Package


FAQ

1. Q: What is a cyclone separator used for?

A: The cyclone separator is a cyclone type structure. Its working principle is that the tangential introduction of the air flow causes a rotary motion, so that the solid particles or droplets with large inertial centrifugal force are thrown to the outer wall surface and separated, which has a high separation efficiency. The cyclone barrel is also equipped with a quick connector, which can be connected safely and quickly to the grinder to achieve the effect of vacuuming.


2. Q: How to use the dust collecting device in the IVC-55L industrial vacuum cleaner?

A:  The IVC-55L vacuum cleaner is equipped with a set of collecting device, which is mainly composed of a dust bag hanging barrel and dust bag. Install the dust bag on the dust bag hanging barrel, and then install the barrel under the cyclone separation barrel and the filter barrel respectively. Before the vacuum cleaner is ready for work, pull the dust bag from the dust bag hanging bucket and tie it with a cable tie to prepare for dust collection.
