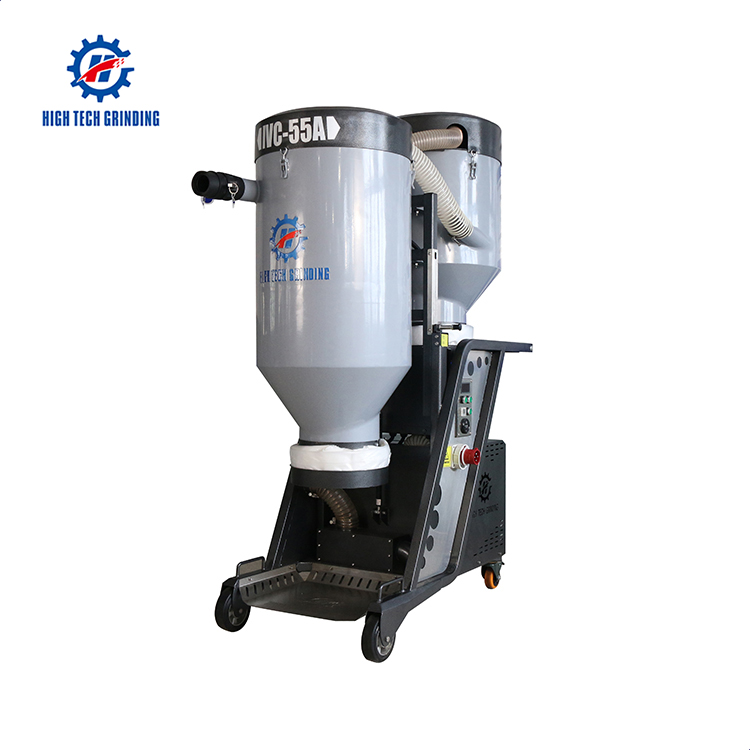

IVC-55A Industrial Vacuum Cleaner With Automatic Dust Removal Technology

IVC-55A Industrial Vacuum Cleaner is a powerful dust extractor with backflushing and automatic dust removal technology. The whole body is made of Q235 steel, with two-stage filter cartridge, 550mm barrel design, negative pressure 300Mbar.


  • Brand:

    High Tech Grinding
  • Item NO.:

    IVC-55A
  • Product Origin:

    Fujian, China
  • Color:

    Black And Gray
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

IVC-55A Industrial Vacuum Cleaner With Automatic Dust Removal Technology

Specifications

Model

Industrial vacuum cleanerIVC-55A

Voltage

380V 3 phase

Power

5.5KW/7.5HP

Weight

280kg / 617 lbs

Suction diameter

50mm/80mm

Air flow rate

 600m3/h

Packing Size

182*74*162cm

Packing Weight

373kg

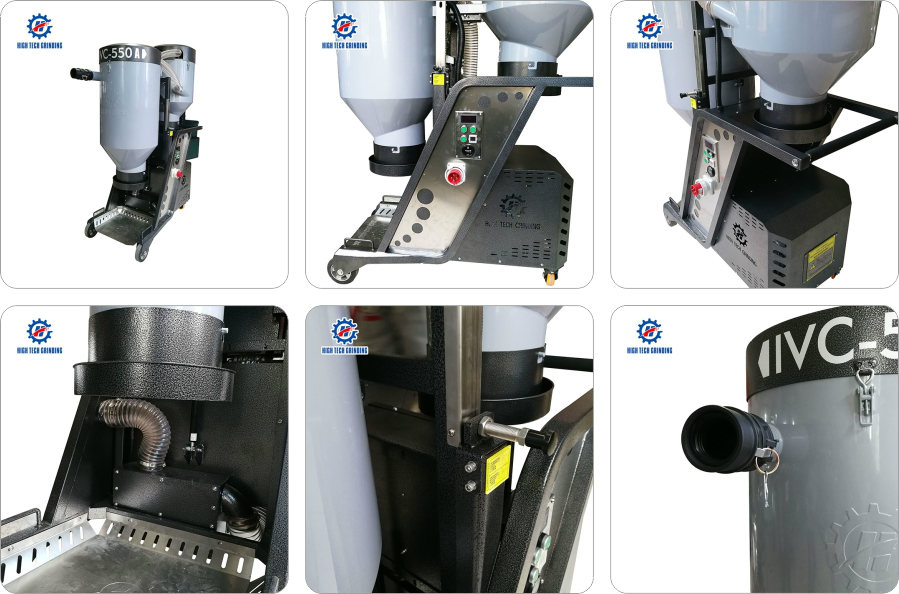

Product display


• Automatic dust removal for uninterrupted work
• Equipped with backflushing and automatic dust removal technology, make longer filter life.
• The pressure sensor senses the negative pressure value and promptly reminds the buzzer to alarm.
• Two-stage filter cartridge Haipa H13 filter (International famous brand) for super vacuum performance.

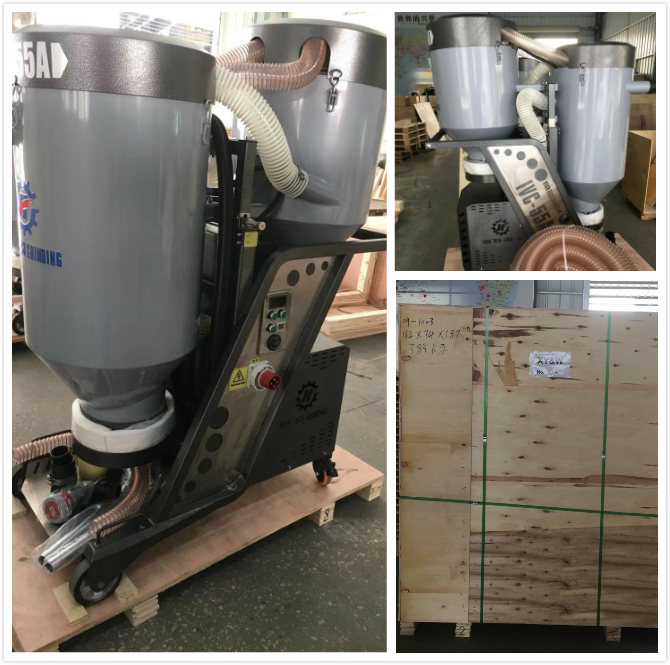

Package


FAQ


1. Q: What is a cyclone separator used for?

A: The cyclone separator is a cyclone type structure. Its working principle is that the tangential introduction of the airflow causes a rotary motion so that the solid particles or droplets with large inertial centrifugal force are thrown to the outer wall surface and separated, which has a high separation efficiency. The cyclone barrel is also equipped with a quick connector, which can be connected safely and quickly to the grinder to achieve the effect of vacuuming.


2. Q: What is the working principle of the filter barrel?

A: The filter element barrel is mainly composed of three filter devices. Due to the adsorption effect of the filter, the dust in the air will be adsorbed on the surface of the filters when passing through or fall on the dust collection equipment of the filter barrel due to gravity.
