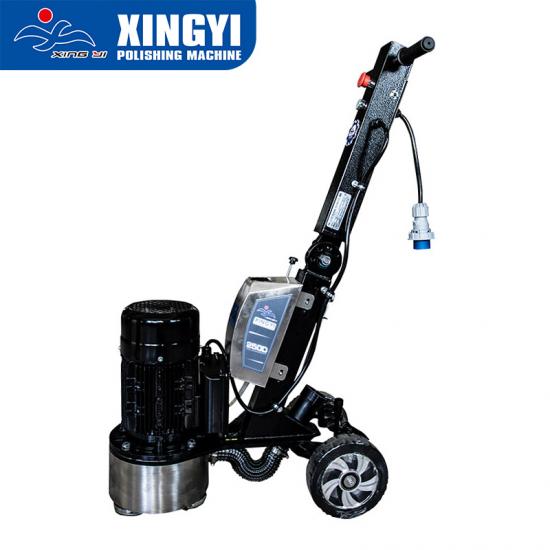

The 250D professional angle floor preparation machine is specially designed for small areas of job sites in various kinds of floor conditions like concrete, terrazzo, marble, cement, granite and so on.
Brand:
XingyiItem NO.:
250DProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:
7-20 Days250D XY Diamond Corner floor Angle Grinding and Polishing Machine

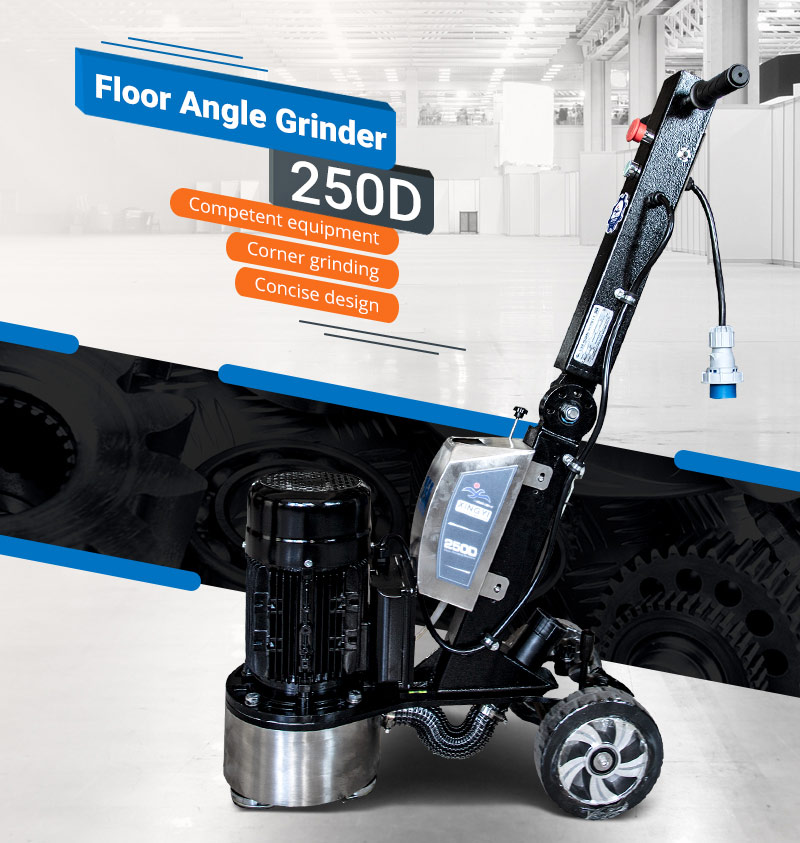

The 250D professional edge floor grinding machine is specially designed for small areas of job sites in various kinds of floor conditions like concrete, terrazzo, marble, cement, granite and so on. With a compact dimension, 250mm small operating width and 65kg lightweight, it is agile to be transported and carried. Equipped with an 8L water tank, it can be used to wet grinding and dry grinding. Powered by 110V and 220V single phase, it can be applied for both construction and home use. Combining impressive high performance with low weight, the concise design ensures easy operation and a comfortable user experience.
Specifications
Model |
250D Angle floorgrinder polisher |
|
Voltage |
110V 1 phase |
220V 1phase |
Current |
26.6A |
13.3A |
Operating width |
250mm |
|
Horse power |
2.2kw/3hp |
|
Rotating speed |
1460rpm |
|
Frequency |
50/60hz |
|
Packing size |
74*50*88cm |
|
Water tank |
5L |
|
Weight |
65KG |

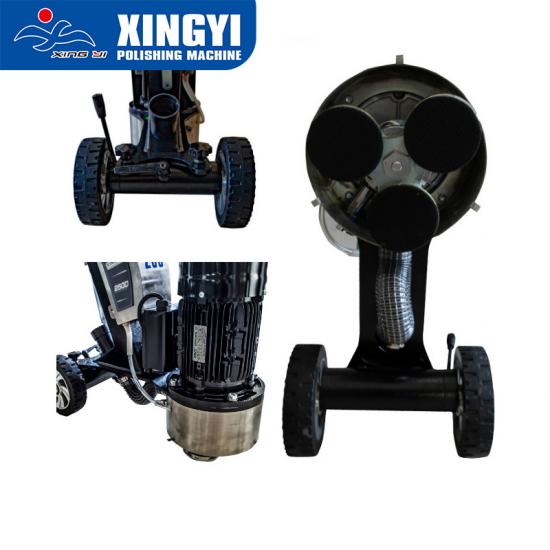

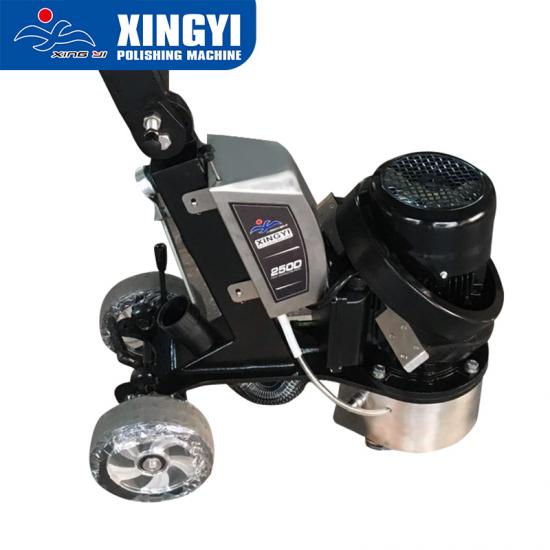

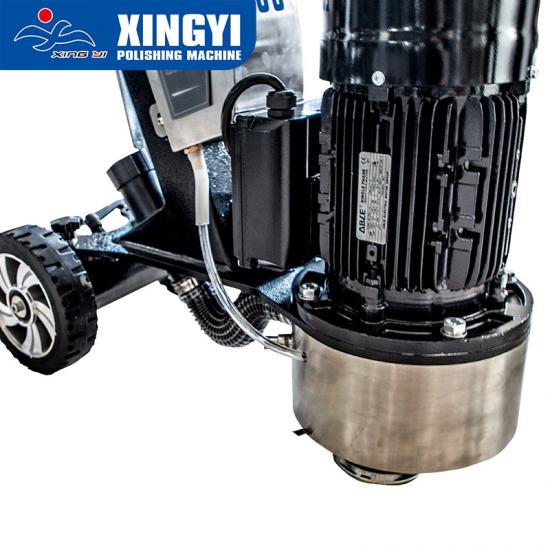

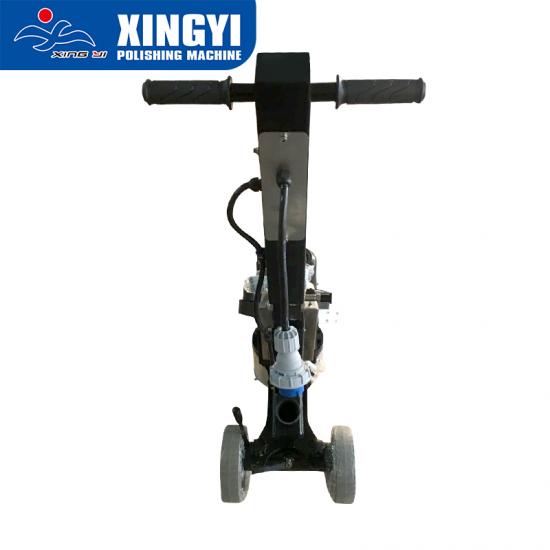

Product display
Scope of application:
1. Removal of coating: glue, leveling compound, paint, thin epoxy coating, tile leveling layer.
2. Concrete repairing: concrete repair damaged by rainwater
3. Leveling (grind the higher points on the ground)
4. Edge corner polishing
5. Small area polishing and grinding
6. Remove residual glue, paint, wall powder, etc. on the medium-sized concrete floor.

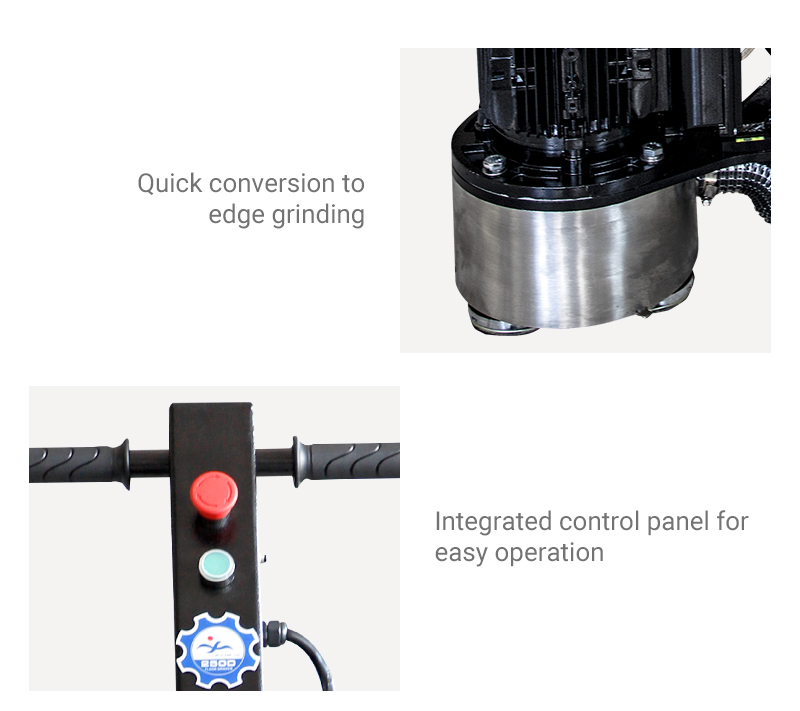

■Quick conversion to edge grinding

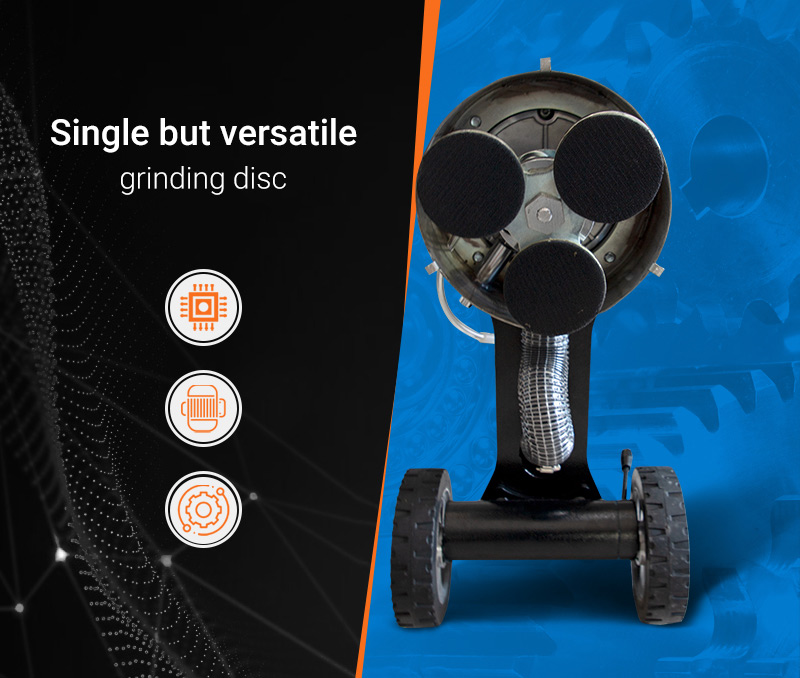

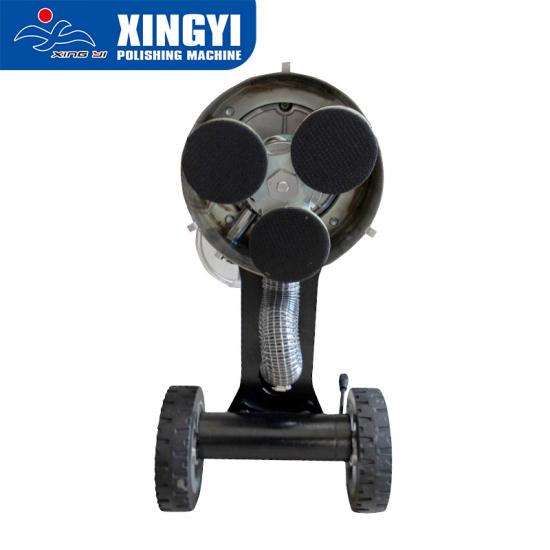

■Single but versatile grinding disc
■Integrated control panel for easy operation

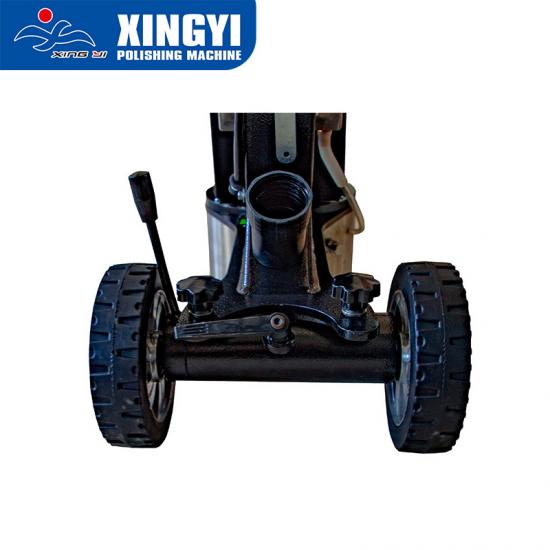

■Adjustable wheel axle with high-quality bearings
■Compact dimension for easy transportation
FAQ
Q1:how do you maintain a floor grinder?
A1:
1.Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2.Clean the water tank every week to prevent the dust blocks the filter.
3.After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4.If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5.Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6.Ask professional technician to do the machine maintenance and record the content of maintenance.
Q2:What is a edge floor grinder used for?
A2:
