With perfect self-propelled system and strong grinding power, the 800LE is a perfect floor grinding polishing machine for flooring industry, which can be used to grind and repair various kind of floor application, like concrete, terrazzo, cement, marble, granite and so on.
Brand:
XingyiItem NO.:
800LEProduct Origin:
Fujian, ChinaColor:
Black And RedShipping Port:
XiamenLead Time:

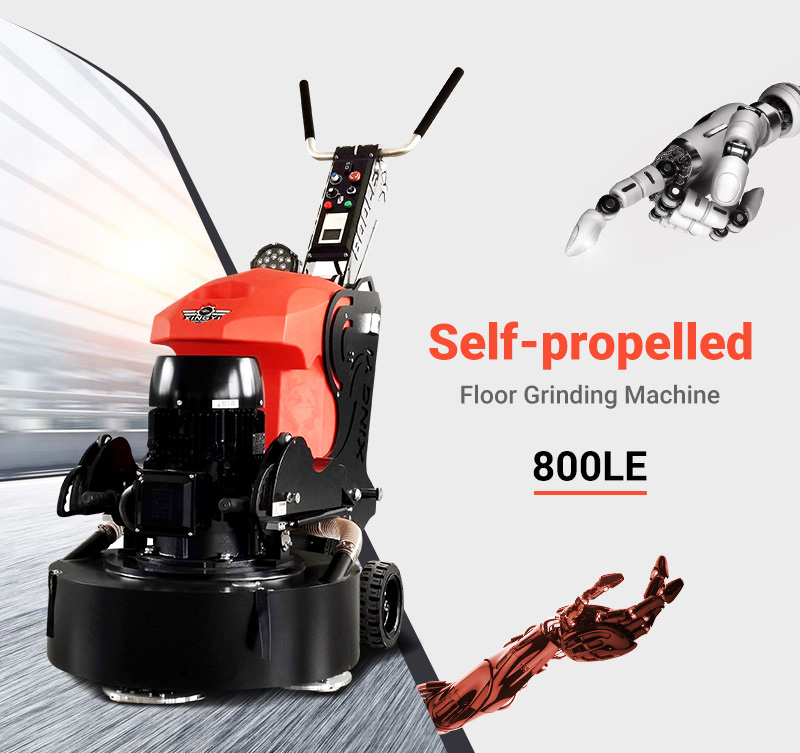

7-20 Days800LE China Self-propelled Diamond Floor Grinding Polishing Machine Equipment
With perfect self-propelled system and strong grinding power, the 800LE is a perfectfloor grinding polishing machinefor flooring industry, which can be used to grind and repair various kind of floor application, like concrete, terrazzo, cement, marble, granite and so on. The color of the overall body highlights the Chinese red design, which is very high-end and beautiful. Equipped 20HP world-renowned WEG motor and Delta inverter, 556kg heavy net weight, the 800LE diamond floor grinding machine is of strong grinding pressure and stable working performance.

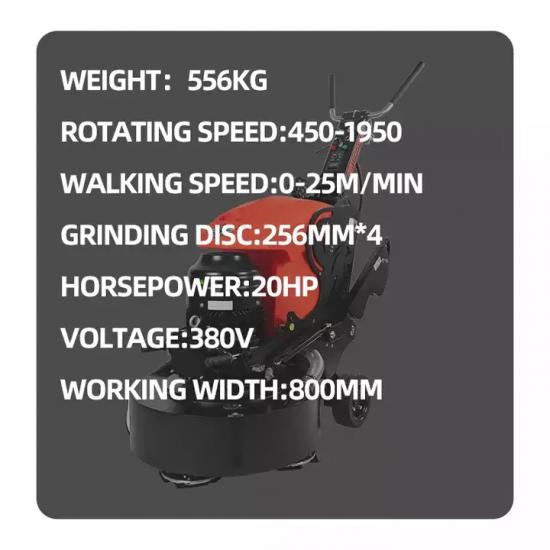

Specifications
Model |
800LEVersatileSelf-propelled Concrete Terrazzo Floor Grinder |
|
Voltage |
220V3 phase |
220V or380V 3 phase |
Current |
55.55A |
32.23A |
Working width |
800mm |
|
Grinding disc |
256mm*4 |
|
Rotating speed |
450-1950rpm |
|
Frequency |
50/60Hz |
|
Motor power |
15KW/20HP |
|
Inverter power |
15KW/20HP |
|
Configuration |
WEG motor+ Delta/Veichi inverter |
|
Weight |
556kg |
|
Extra weight |
30kg x 2 |
|
Water tank |
39L |
|
Packing size |
147*88*132cm |
Product display

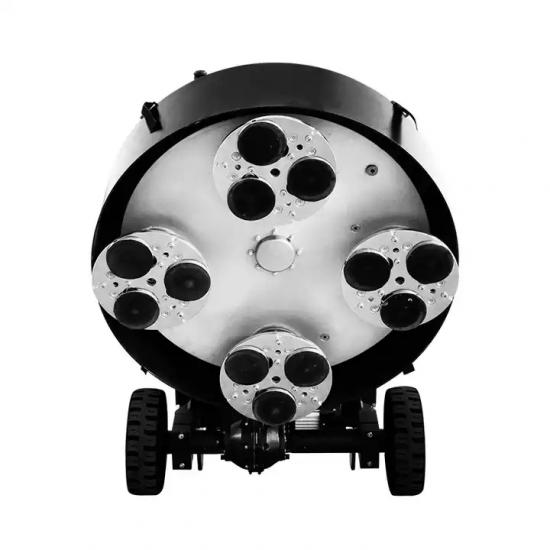

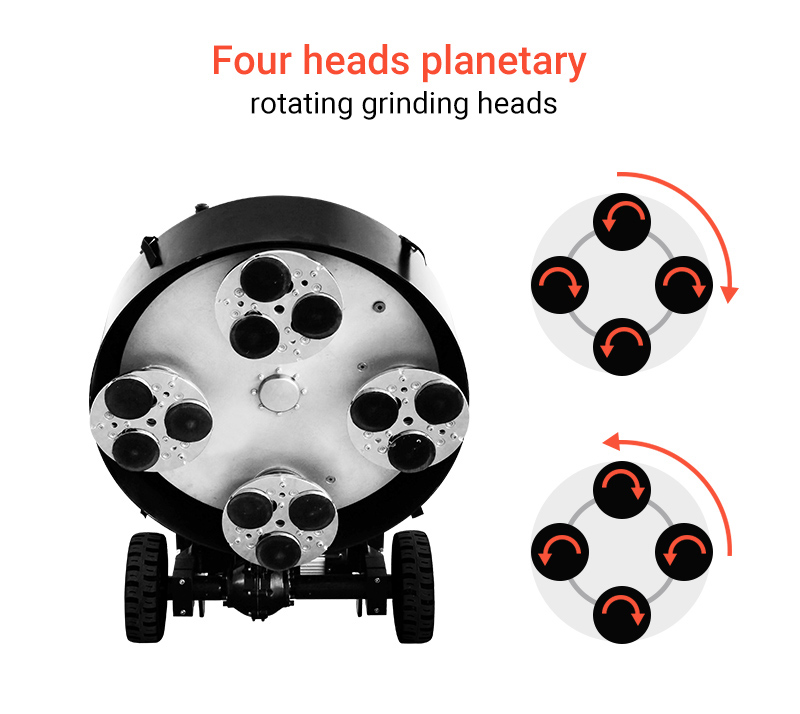

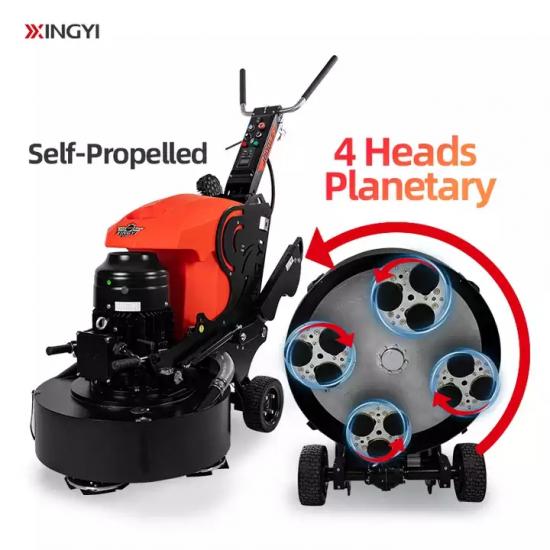

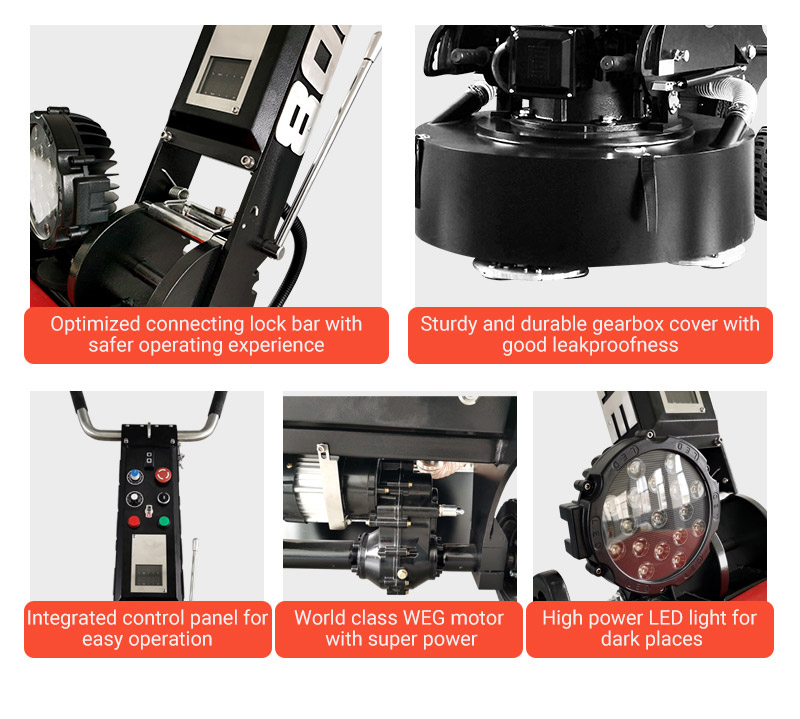

▲Four heads planetary rotating grinding heads
▲Sturdy and durable gearbox cover with good leakproofness

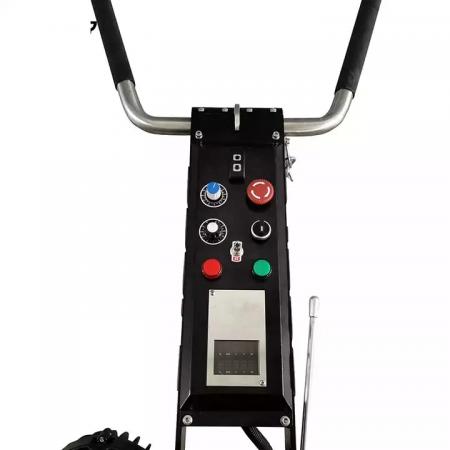

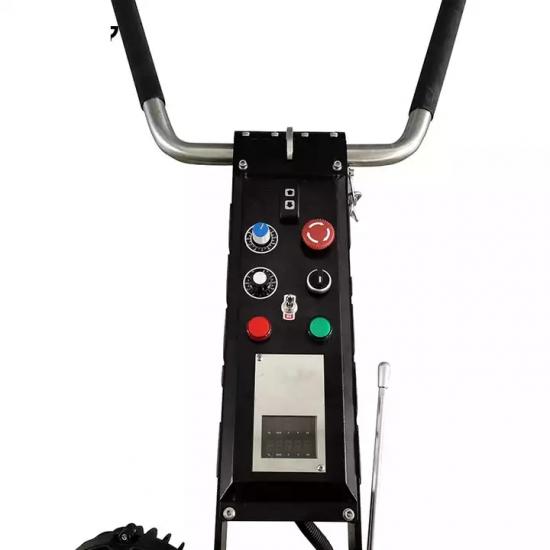

▲Integrated control panel for easy operation

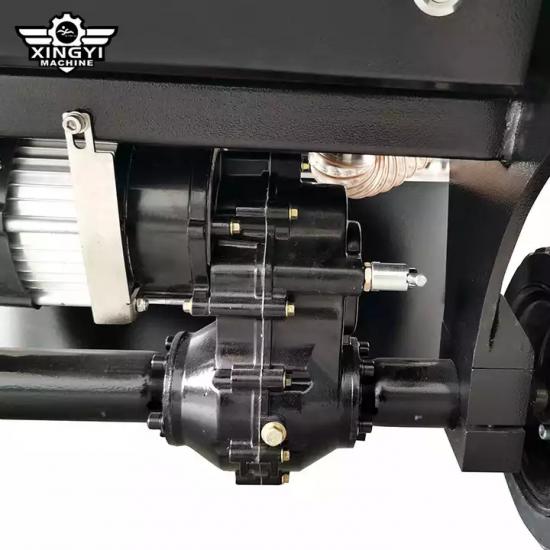

▲World class WEG motor with super power

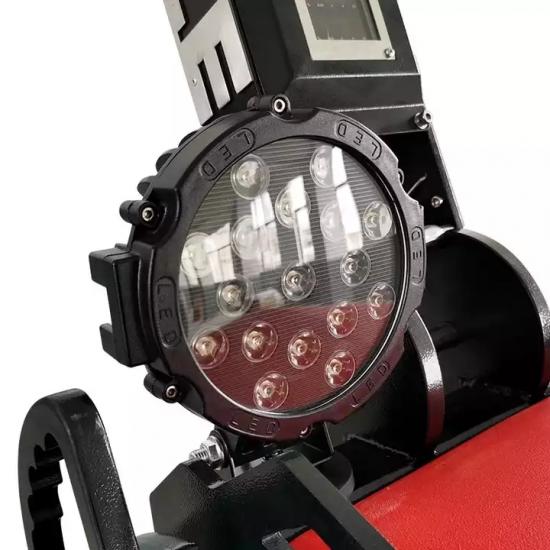

▲High power LED light for dark places
▲Optimized connecting lock bar with safer operating experience
FAQ
Q1:Why do we recommend you to buy the 800LE self-propelled concrete terrazzo floor grinder?
A1:
1. The 800LE is equipped with hard gear tooth surface, which has a gear transmission efficiency as high as 97%.
2. Equipped with a well-known brand WEG motor, which can withstand high temperature and large loads.
3. Equipped with Delta inverter and an excellent parameter adjustment device, which can intelligently alarm and protect the machine to facilitate customer troubleshooting.
4. There is a 800mm large working width in the 800LE floor grinding machine. Under the same working area, its working efficiency is equivalent to that of 5 floor grinder with a working width of 550mm.
Q2:How do you use a floor grinder?
A2:
