Home Concrete Floor Grinder Concrete polishing machinery

New Products

  • Epoxy Concrete Floor Grinder

    GX720 Epoxy Concrete Floor Grinder GX720 Concrete GRINDING MACHINE It adopts integrated gearbox design, stronger efficiency, longer service life, and increase the grinding flatness. Suitable for all applications: floor prep, grinding and polishing. 4-heads, stable design, and adopt multi-functional grinding plate can attach metal and resin pads. Equipped with the drive device and rechargeable battery, constant speed for better construction result.GX720 is a self-propelled grinder. More

  • Epoxy Coating Floor Grinding Machine

    GX688 Epoxy Coating Floor Grinding Machine GX688 gears Concrete Grinding machine The GX688 grinder is the first one in the world; Xingyi exclusive technology;5-gears transmission technology reduces the loss of gear transmission and energy consumption by 5% to 8%. The 5-gears transmission technology realizes no intermediate transition gears and eliminates the phenomenon of "tooth skipping".The 5-gears transmission technology reduces gearbox failure rate by more than 60%. More

  • Classic square epoxy floor grinding machine

    GX500 Concrete Floor Grinding Machine Single phase rotary machine, with a 500mm working width, powerful motor equipped by 4 counter rotation grinder heads, gear box driving, simple machine for your middle size project. Foldable handle and adjustable weight iron and LED light make your working more efficiently and easy. More

  • large terrazzo floor grinder

    Tank1500 large areas terrazzo floor grinder Tank1500 is a very suitable for industrial applications, low-maintenance, smooth-running on-board grinding and polishing machine, gearbox, completely sealed and dustproof. More

  • Remote Control Floor Grinder

    HTG-680RC Remote Control Floor Grinder Base on our HTG series ,we have created a radio controlled (RC) model.which one anAffordable & Luxury grinder series. HTG-680RC is a powerful remote control grinder with compact size 680mm to pass through a standard door, therefore, it’s a versatile unit suits for any medium to large jobs.The remote control sets the operator free to manage hoses and cables while still grinding, for up to 40% higher productivity. More

  • epoxy floor grinding machine

    GX750 Epoxy Coating Concrete Floor Grinding Machine GX 750 Planetary Concrete Grinder is a heavy-duty equipment for your polishing project,  the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine.GX750 is a self-propelled machine More

Concrete polishing machinery

Xingyi enginnerings found that effiency of most grinders is not high as they use belt-driving system.And tension between belts waste a lot of power in practices.In Addition ,belt-driving system cannot control grinding presion very well in that belts will slip when friction with floor is big.

This will lead to unstable speed of grinding heads or belts tension can slow down spinning of grinding heads significantly.The good news is that gear driving system can solve this problem for you.this gear driving planetary rotating systemn has been through 13000hours of testing successfully.

  • Brand:

    High Tech Grinding
  • Item NO.:

    800-4E
  • Product Origin:

    FuJian,China
  • Color:

    Black and Sliver
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7 days
Product Detail

High Efficiency Energy-Saving Professional Concrete Grinding Machine

product description

Motor  Efficient15KW(20HP) motor
Inverter  Delta18.5KW(25HP)
Working width 800mm
Grinding disc  256mm*4
Motor rotating speed  450rpm-1950rpm
Machine net weight  555kg(Including additional weight 20kg*2)
Voltage   220v/380v Three phase
Grinding pressure 245kg-265kg-285kg

 Water tank

yes



Question:

 1.What’s the weight of the machine?

The machine's own weight of 555kg, can be suitable for a variety of floor construction requirements. Flip weight iron design, can transform a suitable for a variety of floor with the characteristics of the implementation of double the efficiency than traditional grinding machine, and the construction effect is remarkable.



2.What’s the work area of the concrete grinder?

800MM polished width, can effectively ensure the smoothness of the floor to reduce the operator's labor intensity, greatly improving the construction efficiency.



3.What’s the material of the machine’s gear box?

Gear box and work area with aluminum one-piece structure, super-durable construction.



4.How the machine reduce the dust?

Original telescopic compensation structure and top seal design, to ensure that the construction process at all times close to the ground, reducing dust.



5.What’s the strength and durability of wheels?

With ultra-tough rubber wheels, strength and durability, can better improve the effectiveness of machine operation and service life.

Henghua High Quality Concrete Grinding Machines For Sale Machine In China - Buy Concrete Trowel Machine For Sale,Concrete Block Machines For Sale,Grinding Machine For Shaft Product on 1118.com

Grinding machine features:

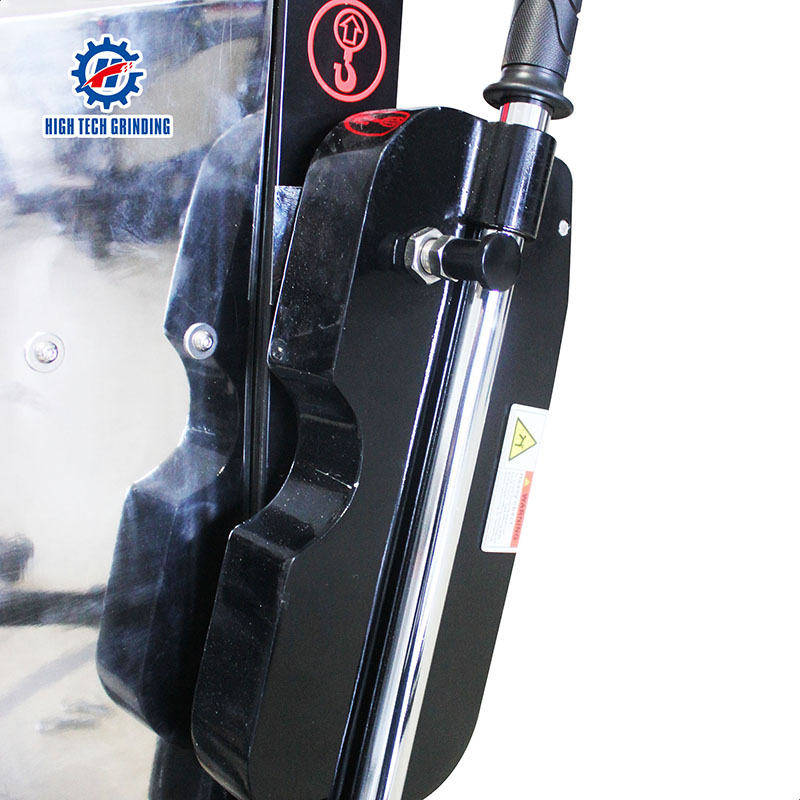

1.   Weight of Iron

Our floor grinding machine itself with two heavy irons, In the face of poor ground grinding conditions, we can adjust the heavy irons to increase the machine's weight, and avoid the manual handling of heavy irons.


2.Gear Box

High Tech remote control floor grinding machine HTG-800-4E with unique and patented planetary four-heads driving system, which achieved the innovation of low maintenance gear driving planetary head rotation system. While

 HTG-800-4E with four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than 750-3Dmachine.
