laser screed machine floor leveling machine
  • *Item NO.:Tank EL25-2
  • *Payment:TT/Western union
  • *Product Origin:Fujian Province, China
  • *Color:Black
  • *Shipping Port:Xiamen
  • *Lead Time:7 days after receiving payment from buye
  • *Order(MOQ):1
Product Detail

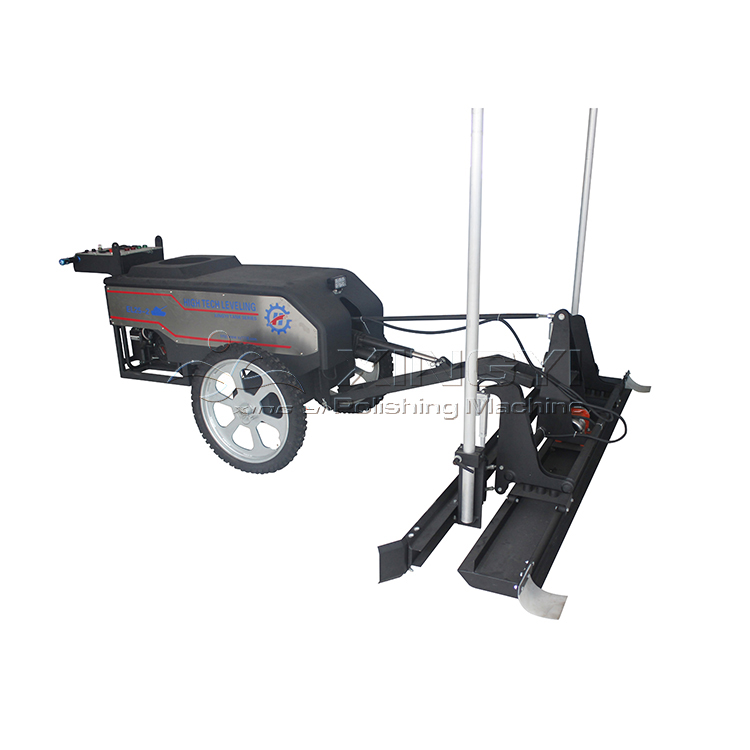

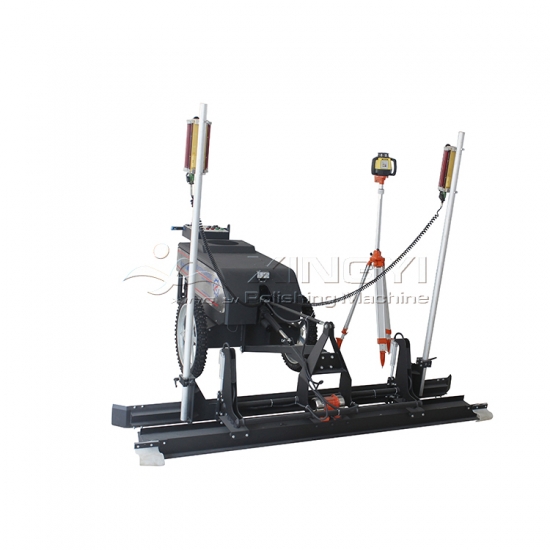

Laser screed machine, the working principle of Tank laser screed machine: laser transmitter generates a rotating laser, the laser screed machine comes with a receiver will receive signals for analysis by laser control system, the deviation will be fed back to the leveler sensitive computer control system, Left and right electric putter will adjust the height of the scraper to ensure the accuracy of leveling.

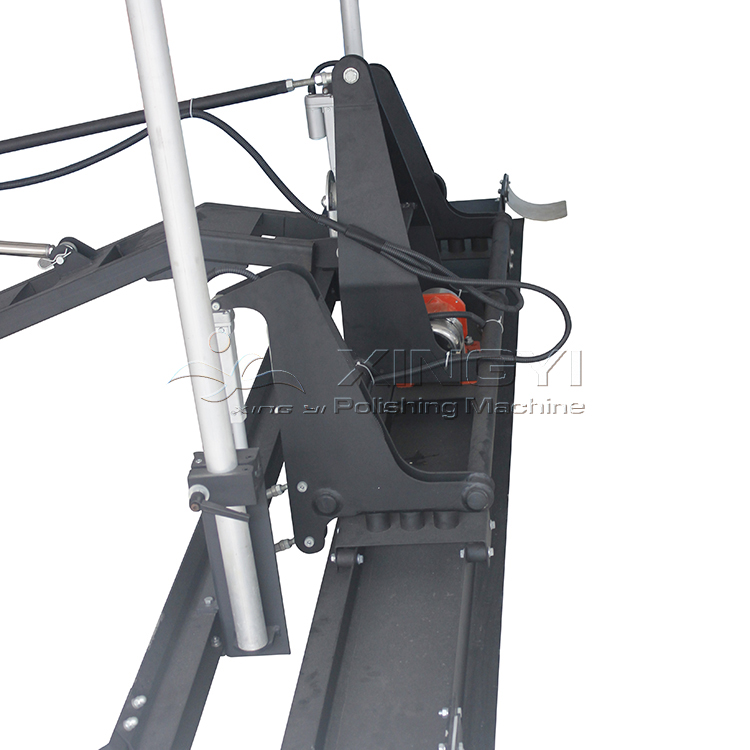

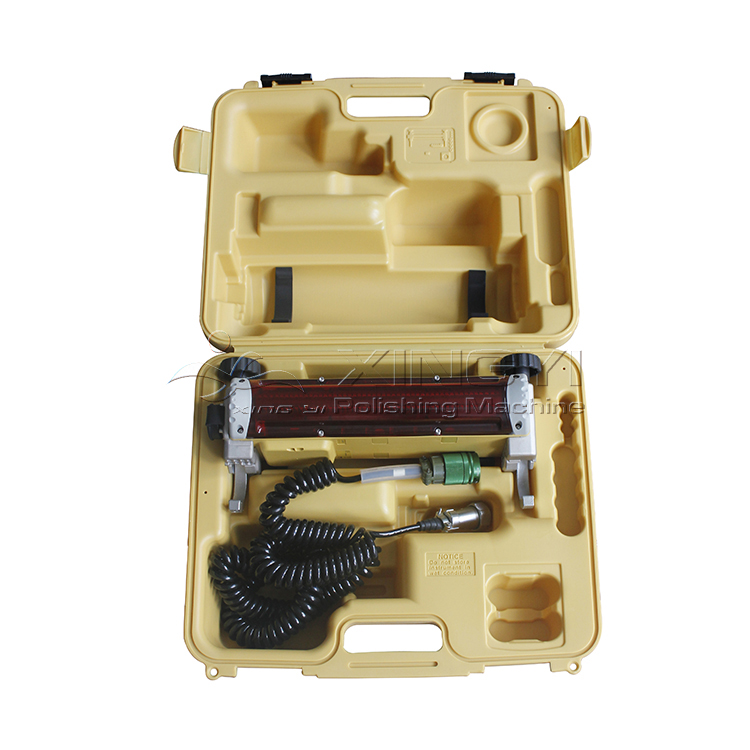

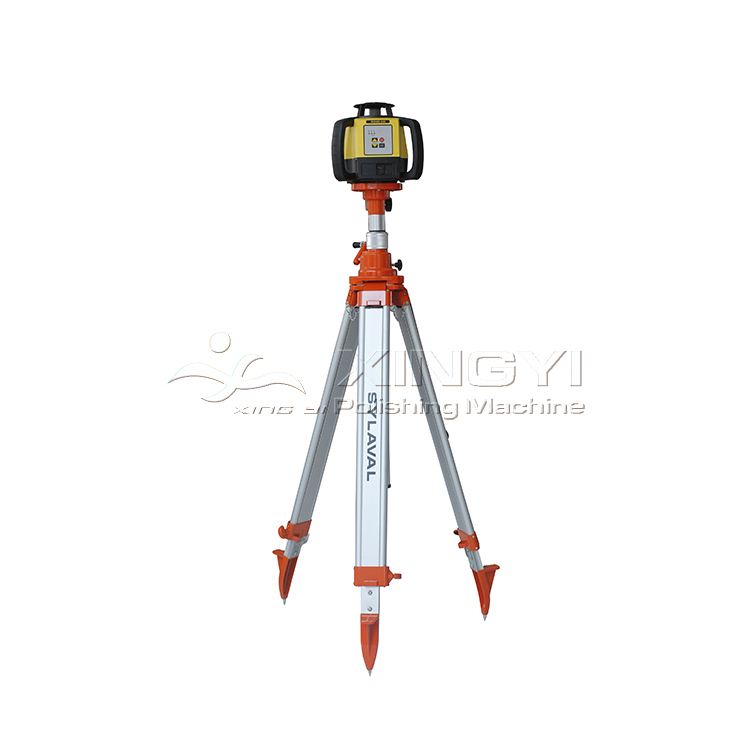

Laser leveling machine, two wheel walk behind concrete laser screed machine core-system and part is imported by other country。 Use precision laser technology,Laser transmitter is use Switzerland Lycra, Laser receiver, the laser detector in Japan Topcon  ,Electronic drive, regulation is controlled by the introduction of the servosystem. The engine is Honda.

Floor leveling machine. Compare with traditional construction complicate process, Concrete laser screed machine is efficient and sets paving, leveling, vibrating, pulping in one and completed by one time.

 Gasoline capacity  93# gasoline
 Start-up system  Satrted by hand
 Running mode  Wheel driven
 Wheel base  880mm
 Max ground clearance  285mm
 Working width  2500mm
 Fastest moving speed  2.09km
 Vibration frequency  50HZ/70HZ
 Working efficiency  250-550sqm/h
 Working height  2100mm
 Motor type  Imported Honda GX200
 Power  3.2KW
 Packing size  321*273*116cm
