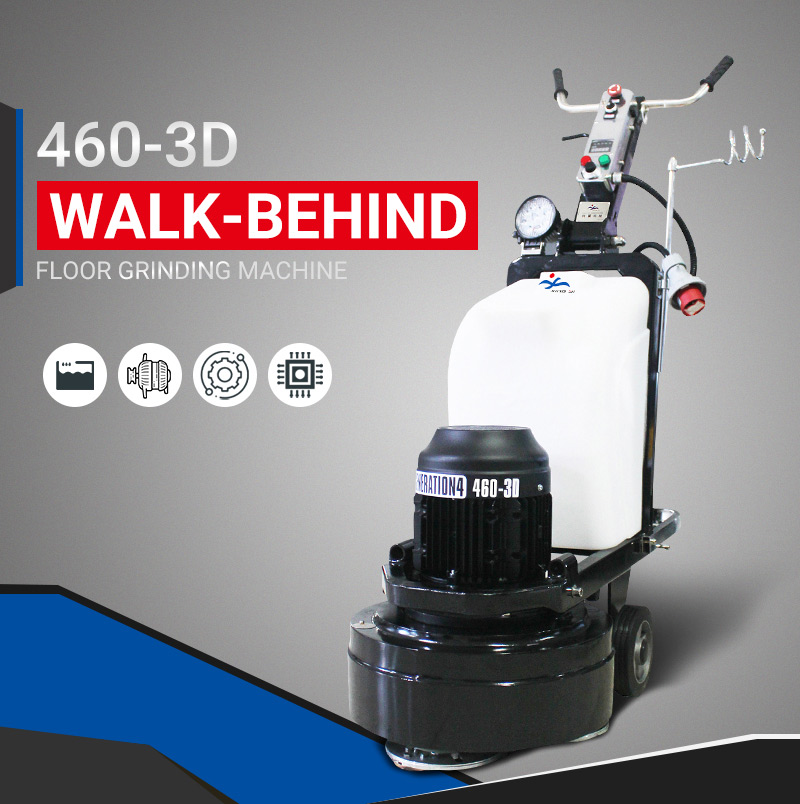

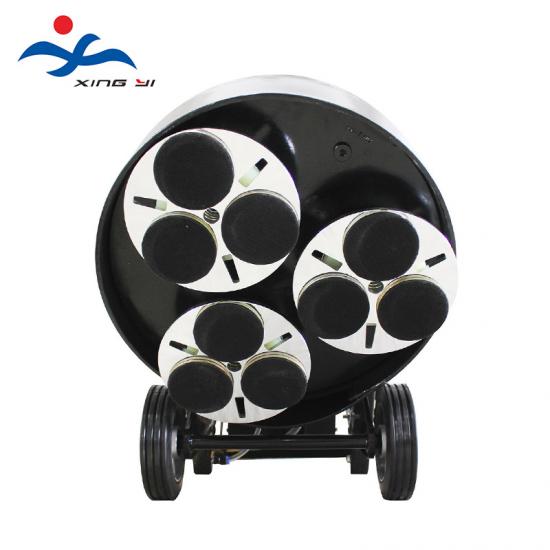

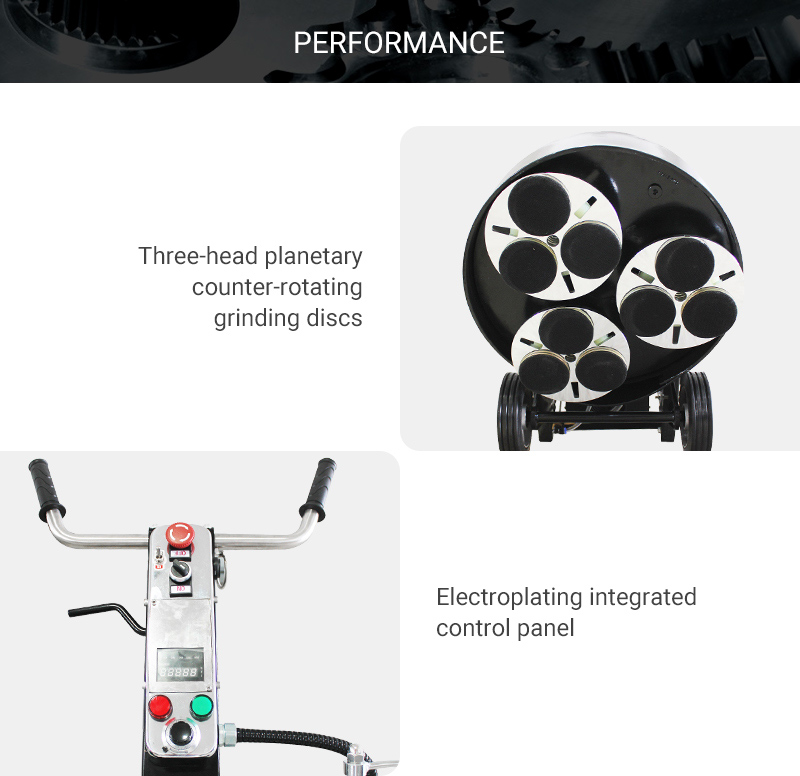

As one of the most hot-selling diamond floor grinding polishing machine, the 460-3D floor grinder is equipped with planetary plate rotating system, which reduce the deviating force during grinding process and make the grinding flatness higher when comparing with similar grinding equipment.
Brand:
XingyiItem NO.:
460-3DProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:

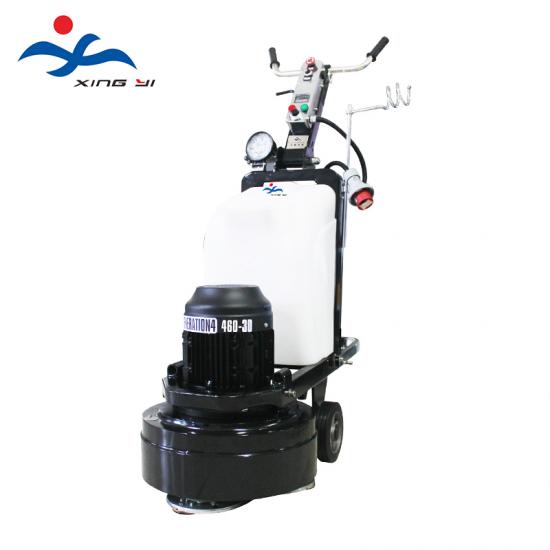

7-20 Days460-3D Triple Heads Planetary Plate Diamond Floor Grinding Polishing Machine System

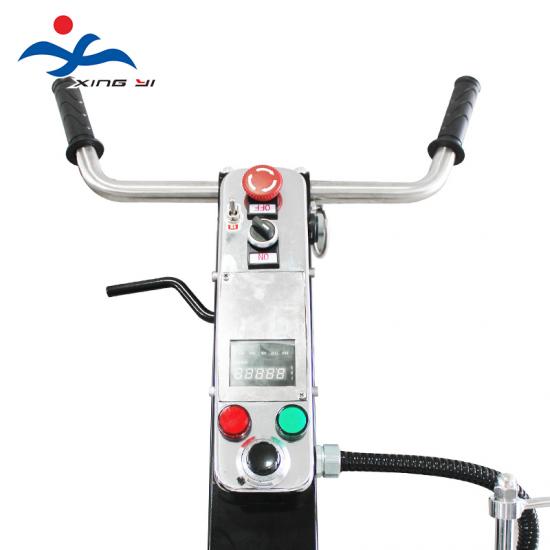

As one of the most hot-selling diamond floor grinding polishing machine, the 460-3D floor grinder is equipped with planetary plate rotating system, which reduce the deviating force during grinding process and make the grinding flatness higher when comparing with similar grinding equipment. With 28L large volume of water tank, it can be used for not only dry grinding but also wet grinding. For water grinding, after rotating the water switch, it can sprinkle water on the grinding plate, cooling abrasive to make higher working efficiency. With a compact dimension and 460mm working width, it can be used, packed and transported easily in daily floor work with less labor cost. with an integrated control panel and detachable machine rack and main electric cabinet, it is of excellent flexibility to both operate, transport and maintain the machine.
Specifications
Model
460-3D Professional concrete floor grinder and polisher
Operating width
460mm
Grinding disc
200mm*3 ( 3 heads )
Rotating speed
360-1260rpm
Motor HP
3KW/4HP
Inverter HP
3.7KW/5HP
Amperage
10.8A
Voltage
220-240V single phase
Weight
150kg
EXtra weight
30kg*1
Water tank
28L
Packing size
104*63*120cm
Configuration
WEG motor + Delta inverter
FAQ
Q1:
How long can the machine use per day?
A1:
① It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.
② The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week so that the machine can last longer.
③ During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real-time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.
④ Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.
Q2:
Who makes the best concrete floor grinder
A2:
