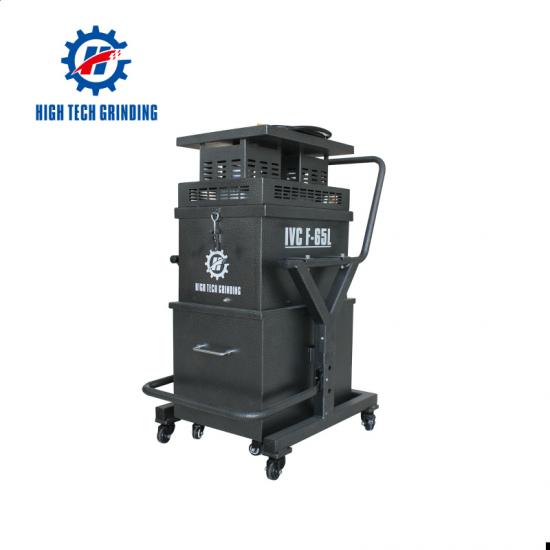

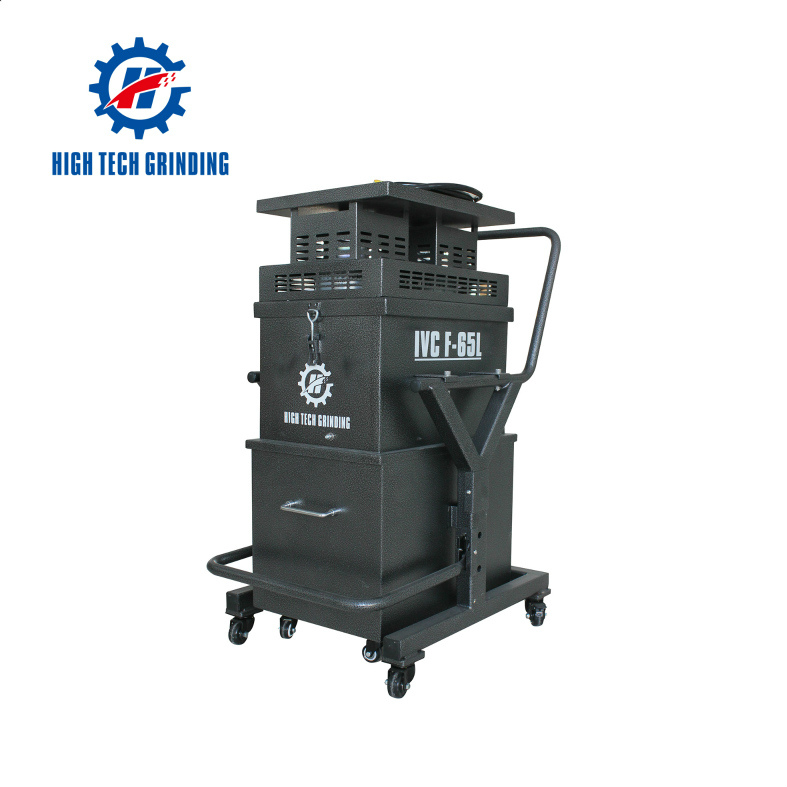

IVC-F65L Powerful Vacuum Cleaner And Small Dust Extractor For Grinding Machine

IVC-F65L is an industrial vacuum cleaner specially designed for grinding machines. It has only one filtration system-accordion filter, which has good dust collection efficiency with small size. The dust box is equipped with universal wheels for easy carrying and transportation.

  • Item NO.:

    IVC-F65L
  • Product Origin:

    Fujian, China
  • Color:

    Black
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

IVC-F65L Powerful Vacuum Cleaner And Small Dust Extractor For Grinding Machine

Specifications

Model

Industrial vacuum cleaner IVC-F65L

Voltage

220V single phase

Power

2.2KW/3HP

Weight

50kg / 110 lbs

Packing Size

82*60*111cm

Air flow rate

358m3/h

Sunction diameter

50mm

Packing Weight

 91kg

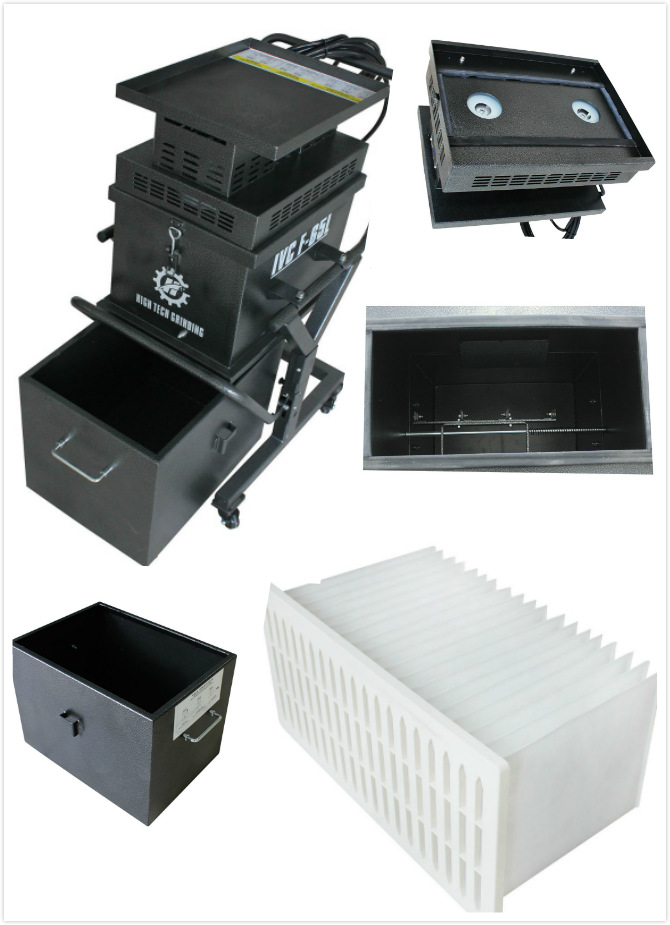

Product display

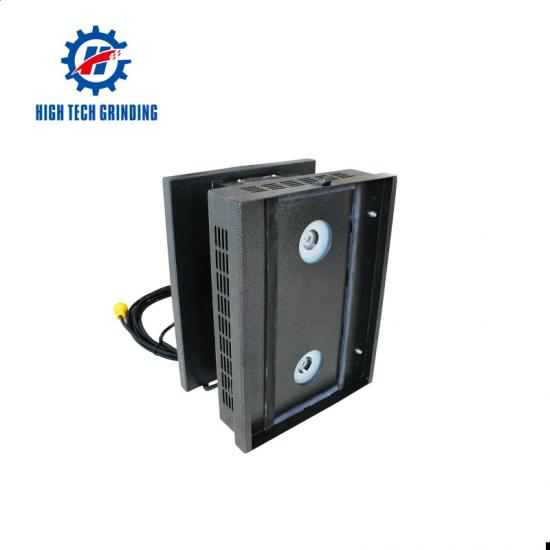

1. Equipped with strong silent type motor(USA professional motor: AMETEK)
2. It is featured with strong suction, high airflow rate, excellent suction function.
3. Lifespan is three times more than an ordinary commercial vacuum motor.
4. Equipped with standard grade H filter instead of the traditional polyester bag filter, a larger filtering area, can effectively filter the 99.9% of the 0.3μm dust particles.

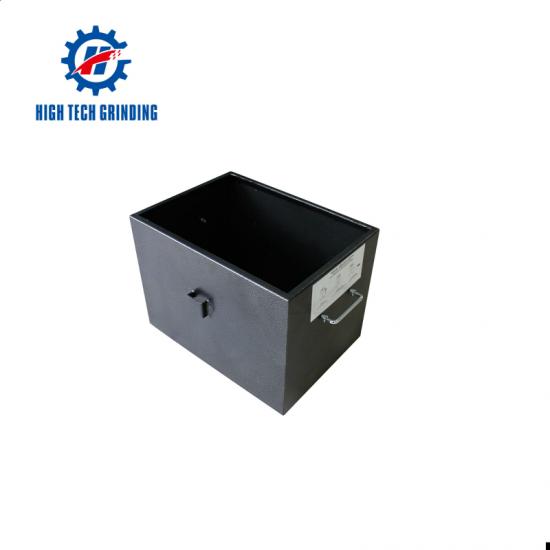

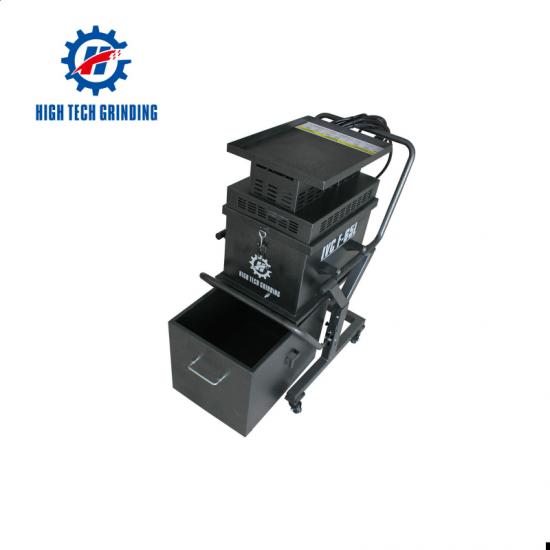

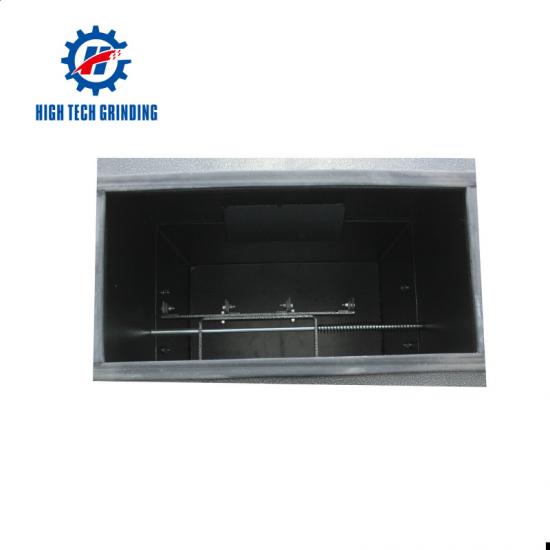

The 65L dust collecting box can collect large capacity dust. Patented lifting structure design on the vacuum frame allows you to fast take out the dust collecting box on the casters, good leakproofness and flexibility. Dust collecting box can be separated from the body to pour out the dust.


Equipped with universal industrial casters, which is easy to walk with the machine and no cable restriction, can brake anytime as your like Ergonomic handlebar design, can move the vacuum cleaner easily.
Can work with Xingyi grinders 460-3D/580-2D/550-3D/640-3D directly at the same pace. Greatly reducing your labor cost.


Package


FAQ

1. Q:  What type of filter system is installed in the F65 vacuum cleaner?

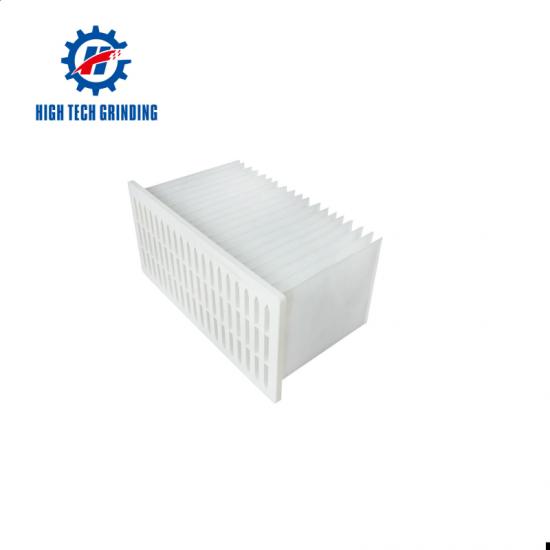

A: The filter system of the filter box is accordion filter. There are electrostatic fibers in the filter material, which is particularly effective for micron dust filtration, with high dust holding capacity, high air permeability, and long service life.


2. Q: Is there any overload protection device installed in the F65L dust extractor?

A: Yes, the F65 is equipped with an overload protection device. When the machine is overloaded, it will enter the overload protection. In this case, just turn the start switch to OFF and press the reset button to restart it.
